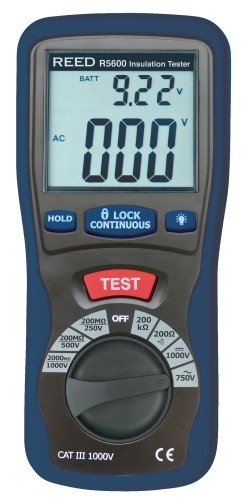

REED R5600 Insulation Tester/MultiMeter

• Test voltage combinations: 250V, 500V or 1000V
• 1mA test current for MΩ range at rated voltage
• 200mA test current for continuity range
• Continuity test with beeper
• Large, easy-to-read dual display with backlight
• Data hold switch
• Test button may be locked on for hands-free operation
• Double molded plastic housing
• Meets IEC61010-1 Cat. III 1000V
• NIST Traceable Certification Available
• Includes test leads, batteries and carrying case

Insulation Resistance Tests:

• Test Voltage: 250V, 500V, 1000V
• Measurement Range: 200MΩ, 2000MΩ
• Accuracy: ±3.5% rdg. ±5 dgt.

Resistance Tests:

• Measurement Range: 200Ω, 2000Ω
• Accuracy: ±1% rdg. ±2 dgt.

Voltage Tests:

• Measurement Range: 750VAC; 1000VDC
• Accuracy: AC: ±1.2% rdg ±10 dgt.;
  DC: ±0.8% rdg ±3 dgt.

Continuity Tests:

• Measurement Range: Beeps ≤40Ω
• Test Current: ≤200mA
• Power Supply: 6 x 1.5V AA batteries
• Dimensions: 200 x 92 x 50mm
• Weight: 700g
