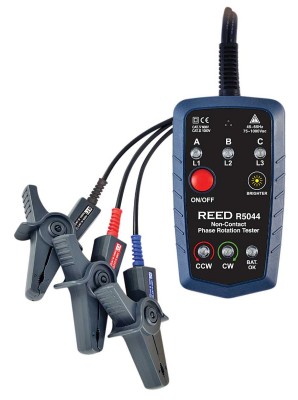

R5044 Non-Contact Phase Rotation Tester

The R5044 motor rotation and 3-phase tester is capable of identifying phase orientation (clockwise or counter-clockwise).

The R5044 features non-metal alligator clips that allow for safe non-contact measurements and includes back mounted magnets for easy measurement. Ideal for installing and troubleshooting 3-phase motors, pumps and controls.

Features:

Non-contact voltage sensing alligator clips promote safety
Color-coded leads (red, black, blue) meet IEC 60446 standards
LEDs indicate phase orientation (clockwise or counter-clockwise) and whether each phase is live
Adjustable LED brightness allows for measurement in sunlight and lowly lit environments
Beeper sounds intermittently when detecting correct phase and continuously for a reversed phase
Durable housing with magnets frees hands and allows for easy measurement
Low battery indicator
NIST Traceable Certification Available
Includes: Non-Contact Phase Rotation Tester, Color-Coded Cables w/ Alligator Clips, Battery & Soft Carrying Case

Specifications:

Voltage Detection Method: Static Induction

Voltage Range: 75 to 1000 VAC

Operating Frequency: 45 to 65 Hz

Power Supply: 9V alkaline battery

Dimensions: 5.0 x 2.8 x 1.8"

Weight: 13.2 oz

Auto Shutoff (after 5 min without power detection)

more info >> R5044 DataSheet (PDF)

R5044 Includes: Non-Contact Phase Rotation Tester, Color-Coded Cables w/ Alligator Clips, Battery & Soft Carrying Case

NIST Traceable Certification Available

NIST Traceable Certification Available - (Optional)

Note: NIST Certification may delay shipment by 1 - 3 Days

Orders over $300 ship FREE to 48 States

R5044 Non-Contact Phase Rotation Tester
RD-R5044
$219.00 ~~$239.00~~

R5044 Non-Contact Phase Rotation Tester

R5044 Non-Contact Rotation Tester w/ NIST
RD-R5044-NIST
$300.60

* * * * * * *
