Test Equipment:

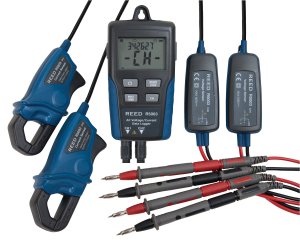

R5003 AC Voltage/Current Data Logger

Simultaneously measure 2 True RMS AC voltage inputs or 2 AC current inputs or 1 AC voltage and 1 AC current input

Features:

User programmable sample rates from 1 second to 24 hours
Stores up to 256,000 measurements
User programmable high/low alarms
LCD indicates time/date, current readings, Max/Min, Peak hold and whether alarm set- tings have been exceeded
Download collected data through USB interface
Auto power off and battery check
NIST Traceable Certification Available
Includes AC current clamp sensor and voltage sensor, USB cable, software, and battery.

Specifications:

AC Current Range: 10 to 200A
Resolution: 0.1A
Accuracy: ±(2% rdg. ±1A)
AC Voltage Range: 10 to 600V
Resolution: 0.1V
Accuracy: ±(2% rdg. ±1V)

>> R5003 DataSheet

>> R5003 Manual

NIST Traceable Certification Available

NIST Traceable Certification Available - (Optional)

Note: NIST Certification may delay shipment by 1 - 3 Days

Orders over $300 ship FREE to 48 States

R5003 AC Voltage/ Current Data Logger
RD-R5003
$332.10

R5003 AC Voltage/Current Data Logger

R5003 Data Logger w/ NIST
RD-R5003-NIST
$471.60

* * * * * * *
