Amprobe
Solar-100
Solar Power Meter
AM-Solar-100
OUT
OF STOCK |
| |
|
Related: |
|
Solar-100
Solar Power Meter
Optimize the placement of solar systems and verify
window efficiency.

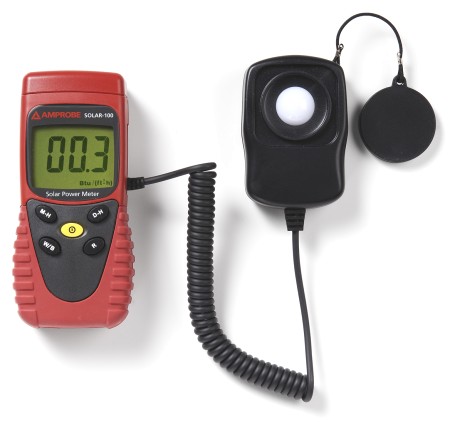

The SOLAR-100
measures solar output that is used to
calculate overall energy, efficiency and placement of solar systems.
Features:
-
Measures the solar power and transmission up to 2000
W/m2,
634BTU /
(ft2xh)
-
Power Mode
measurement of the power per unit area of
incident solar radiation
-
Transmission Mode -
calculates the solar power transmission
percentage of the material for example how much solar
power in % will be transmitted through the window
-
Convenient to read
display with remote sensor technology
-
Selectable
measurement units either W/m2
or BTU / ( ft2
x h)
-
Data Hold
-
MAX/MIN functions to
indentify locations with maximum or
minimum power
Applications:
-
Windows performance
calculation and verification of the
heating or heat reduction caused by direct sunlight
-
Solar radiation
measurements
-
Solar power research
for location of the solar panels or solar
water heater
-
Physics and optical
laboratories
-
Meteorology
- Agriculture
Specifications:
|
Display: |
|
3 digits, 2000 readings |
|
Range: |
|
1999 W/m2, 634BTU / (ft2xh) |
|
Accuracy: |
|
Typically within +/- 10W/m2
[+/-3 BTU/ (ft2xh)] or +/- 5% whichever is greater in
sunlight. Additional
temperature included error +/- 0.38 W/m2 / C [+/-0.12
BTU/ (ft2xh)] / C] from 25 C |
|
Angular Accuracy: |
|
Cosine corrected < 5% for
angles < 60 |
|
Drift: |
|
< +/- 2% per year |
|
Over-input: |
|
Display OL |
|
Sampling Time: |
|
Approx 0.25 second |
|
Operating Temp. &
Humidity: |
|
5C to 40C (41F to 104F)
below 80% RH |
|
Dimensions: |
|
132(L) x 60(W) x 38(H) mm
(5.2 x 2.4 x 1.5 in) |
|
Weight
: |
|
About 150g (0.3 lb) |
|
Battery: |
|
1 X 9V Alkaline Battery (NE
DA 1604A, IE C 6LR61) included |
