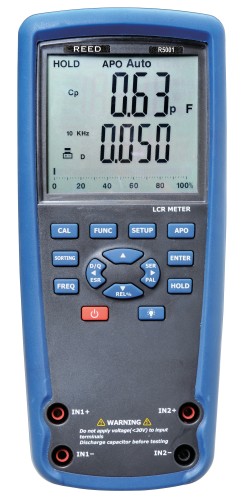

REED R5001 LCR Meter

• Measure inductance/capacitance/resistance with secondary parameters including dissipation factor (D), quality factor (Q), phase angle, equivalent series/parallel resistance (ESR or Rp)
• Autoranging operation for AC impedance and DE resistance measurement
• Auto LCR smart check and measurement
• Series/Parallel modes
• Support DCR mode 200 to 200MΩ
• High accuracy with 4 or 5 terminal Kelvin measurement
• Testing frequency is up to 10kHz and output frequency is up to 100kHz
• Dual display with backlight
• Data hold function
• Low battery indication with auto power off
• Dust and water proof to IP67
• Power Supply: 6 x 1.5V AA batteries
• NIST Traceable Certification Available
• Battery Life: Approx. 30 hours
• Includes test leads, batteries and carrying case

Specifications:

INDUCTANCE

• Range: 20μH to 2000H\
• Resolution: 0.001μH
• Accuracy: ±(0.2% +5 dgt.)

CAPACITANCE

• Range: 20pF to 20mF
• Resolution: 0.001pF
• Accuracy: ±(0.2% +3 dgt.)

RESISTANCE

• Range: 20Ω to 2000MΩ
• Resolution: 0.001Ω
• Accuracy: ±(0.2% +2 dgt.)
• Test Frequencies: 100/120/1k/10k/100k Hz
• Test Signal Level: 0.5 VAC rms typical

>> R5001 Manual


REED R5001 LCR Meter RD-R5001 $251.10

*  *  *  *  *  *  *

REED R5001 LCR Meter w/ NIST RD-R5001-NIST $440.10
