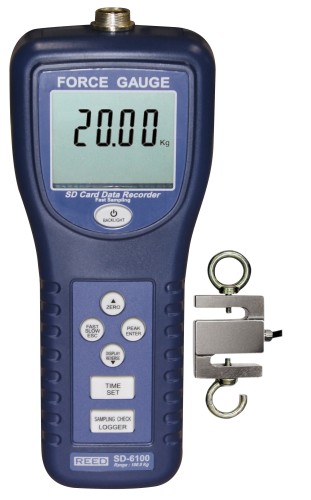

SD-6100
Force Gauge Datalogger - 220 lbs (100.00 KG)
Real-time data
logger with integrated SD memory card (optional) measures/records
push and pull forces up to 220lb (100kg) and features a reversible
display ensuring measurements are easily read, regardless of testing
direction.
The SD-6100 features a real time datalogger with memory card
slot. Using a SD card (max 16Gb), a user can select a desired
sampling rate and quickly generate an Excel file on a SD card
without the use of software. Optional accessories include PC
software to track real-time measurements. |
Features:
- Measures tension and compression
- Fast/Slow response selection
- Data Record in Peak hold or Normal mode
- Full capacity tare (zero) capability\
- Force is measured in kg, lb or Newtons
- Display is reversible so that it always legible
regardless of direction
- Real time data logger with integral SD memory card
(OPTIONAL)
- Easy to read LCD with backlight
- User selectable sampling rate from 1 to 3600 seconds
- Optional PC software features live tracking via USB
connection
- Low battery indicator and auto shut off

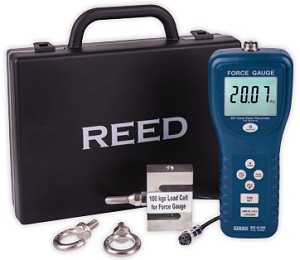

- Includes: 100kg Force Gauge
Datalogger, load cell sensor with 2 hooks and cable,
Batteries
and carrying case
-
NIST Traceable Certification
Available
Specifications:
- Measuring Capacity:
100.0 kg /
220.5 lb / 980.6 N
- Resolution: 0.15 kg / 0.02 lb /
0.02 N
- Accuracy: ±(0.5% + 2 dgt.)
- Full Scale Deflection: Less than
1mm
- Selectable Sampling Rate:
Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s)
- Peak hold: yes
- External Memory: Yes,
expandable up to 16Gb with SD card (optional)
- Data Output:: USB computer interface (w/ optional adapter cables)
- Power Supply: 6 x AA
batteries
- Dimensions: 8.5 x 3.5 x 1.8
- Weight: 1.43 lb
>>
Spec
Sheet |
 |
