REED

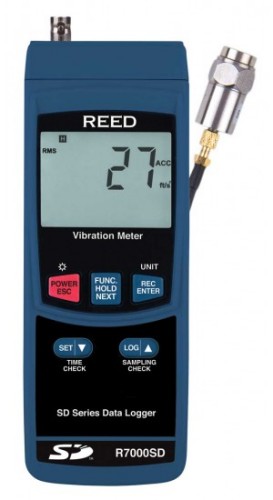

R7000SD Vibration Meter Datalogger
Real-time data
logger with integrated SD memory card measures/records velocity and
acceleration to determine vibration levels in machinery.
The R7000SD measures velocity and acceleration to determine
vibration levels in machinery while meeting ISO1954 standards and
features RMS, Peak hold, Data hold, Max/Min functions and an
easy-to-read backlit LCD display.
Using a SD card (max 16GB), a user can manually record up to 99
readings or automatically by selecting a desired sampling rate from
1 to 3600 seconds. Quickly generate an Excel file with raw data, all
without the use of software. |
Features:
(Replaces
SD8205)
- Measures velocity and acceleration to
determine vibration level
- User selectable unit of measure (metric
or imperial)
- RMS, Peak hold, Data hold and Max/Min
functions
- 10Hz to 1kHz frequency range
- Basic accuracy of ±5%
- Real-time data logger with integrated SD
memory card
- User selectable sampling rate from 1 to
3600 seconds
- Easy-to-read backlit LCD display
- Tripod mount for long-term monitoring
- Meets ISO 2954 standards
- Low battery indicator and auto shut off
-
R7000SD-KIT Includes: Data Logging Vibration Meter
(R7000SD), 16GB Micro SD Memory Card with adapter (RSD-16GB) and
AC Power Adapter (RSD-ADP-NA).
Specifications:
Acceleration
Measuring
Range: 0.5 to 199.9m/s²
0.05 to 20.39g
2 to 656ft/s²
Accuracy: ±(5% + 5 dgt)
Resolution: 0.1m/s²
0.01g
1ft/s²
Velocity
Measuring Range: 0.5 to 199.9mm/s
0.05 to 19.99cm/s
0.02 to 7.87in/s
Accuracy: ±(5% + 5 dgt)
Resolution: 0.1mm/s
0.01cm/s
0.01in/s
>>
Spec
Sheet
|
R7000SD-KIT |
|
 |
NIST
Traceable Certification Available -
(Optional)
Note: NIST
Certification may delay shipment by 1 - 3 Days
Orders over $300 ship
FREE
to 48 States |
|
|
|
|
R7000SD Vibration
Meter Datalogger
RD-R7000SD
$764.10 |
|
|
|
 |
|
|
R7000SD Vibration
Meter Datalogger
w/ NIST
RD-R7000SD-NIST
$899.10 |
|
|
|
 |
|
|
|
|
R7000SD-KIT Vibration
Meter Datalogger KIT
RD-R7000SD-KIT
$805.50 |
|
|
|
 |
|
|
Optional Accessories:
|
|
USB Adapter
Cable
RD-USB-01
$69.00 |
|
|
|
 |
|
|
PC
Software
RD-SW-U801-WIN
$69.00 |
|
|
|
 |
|
|
|
