Features:
- Measures tension and compression
- Records in Peak hold or Normal mode
- Fast/Slow response selection
- Full capacity tare (zero) capability
- Force is measured in kg, lb or Newtons
- Easy-to-read backlit display
- Reversible display ensures legible readings regardless of
direction
- Real-time datalogger with integral SD memory card
(not included)
- User selectable sampling rate from 1 to 3600 seconds
- Optional PC software features live tracking via USB
connection
- Low battery indicator and auto shut off

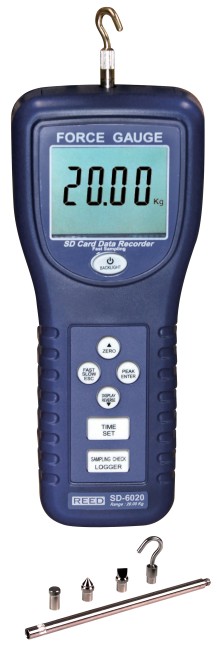

- Includes: 20kg Force Gauge
Datalogger, Flat Head, Cone Head, Chisel Head and Hook Adapters,
Extension Rod, Batteries & Hard Carrying Case
-
NIST Traceable Certification
Available
Specifications:
- Measuring Capacity:
20.00 kg /
44.10 lb / 196.12 N
- Resolution: 0.01 kg / 0.01 lb /
0.02 N
- Accuracy: ±(.5% + 2 dgt.)
- Full Scale Deflection: 0.4mm max.
- Sampling Time: 1, 2, 5, 10, 30,
60, 120, 300, 600, 1800, 3600s
- Peak hold: 10 to 500 ms
- Memory Card: SD memory card,
(optional) 1 GB
to 16 GB
- Data Output:: USB interface (w/ optional adapter cables)
- Power Supply: 6 x AA
batteries
- Dimensions: 8.5 x 3.5 x 1.8
- Weight: 1.43 lb
|
>>
Spec Sheet |
