REED

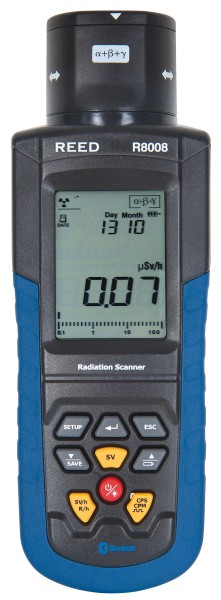

R8008 Radiation Meter
Used for the
detection of gamma radiation, X-Rays, and alpha and beta particles
This is a gaseous ionization detector that
uses the Townsend avalanche phenomenon to produce an easily
detectable electronic pulse from as little as a single ionising
event due to a radiation particle.
|
|
Features:
- Monitors the environment to alert users to the presence
of radioactive material
- Energy compensated Geiger Mueller detector
- Detects Alpha, Beta, Gamma, and X-radiation
- Automatic selection of measurement range
- Adjustable indication of average time
- Accumulation of radiation detection values and conversions
between different measurement units
- Pulse counting function
- User-adjustable alert levels with audio/visual alarm
indicators
- Can store 4000 groups of data internally
- Interfaces to a computer via Bluetooth
- LCD display with numerical and bar-graph indicator and
backlight
- Detects radiation
leaks; Checks for contamination; Finds radioactive items in the
workplace or home; Checks for radioactive deposits in the
ground; Checks for X-ray scatter; Locates spill and lost
materials
Specifications:
- Measured Rays Alpha, Beta, Gamma, and X-rays
- Radiation Dose Rate Range 0.0001 - 1000Sv/h
- Pulse Dose Rate Range 0 - 4000cpm/cps
- Accumulated Radiation Dose Value 0.001Sv - 9999Sv
- Accumulated Pulse Dose Rate 0 - 9999
- A-Ray Sensitivity From 4.0 MeV
- B-Ray Sensitivity From 0.2 MeV
- Y-Ray Sensitivity From 0.02 MeV
- X-Ray Sensitivity From 0.2 MeV
- Accuracy <10% (less than 500Sv/h)
<20%(less than 600Sv/h)
- Output Port Wireless Bluetooth transmission
- Average Time Adjustable 2 to 12 seconds
- Natural Environment Value Less than 0 - 0.2Sv/h
- Internal Memory 4000 groups of data
- Power Supply 4 x 1.5V batteries
- Dimensions 200 x 70 x 45mm
- Weight 206 g
|
Spec Sheet (PDF) |
|
REED R8008
Radiation Meter / Detector
RD-R8008
$512.10 |
|
|
|
 |
|
