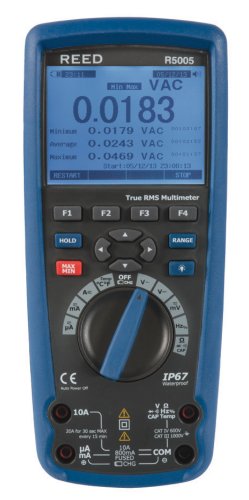

R5005 TRMS MultiMeter Data Logger

Features:

• AC and DC voltage and current, resistance, capacitance, frequency and duty cycle measurements
• 10MHz frequency counter
• Temperature measurement capability
• True RMS AC voltage and current measurements
• Min/Max/Avg and Peak hold (>1ms) functions
• Store up to 10,000 recorded events
• Real time clock for automatic time stamping of readings
• Log multiple sessions or log data continuously for over 200 hours
• 50,000-count graphical LCD with backlight displays multiple sets of measurement data simultaneously
• Bluetooth interface
• IP67 rated waterproof
• NIST Traceable Certification Available

Specifications:

• AC/DC Voltage Range: 50, 500mV, 5, 50, 500, 1000V
  Resolution: 0.001, 0.01mV, 0.0001, 0.001, 0.01, 0.1V
  Accuracy: AC: ±(0.3% rdg. + 25 dgt.) (50/60Hz);      DC: ±(0.025% rdg. + 5 dgt.)
• AC/DC Current Range: 500, 5000A, 50, 500mA, 10A
  Resolution: 0.01, 0.1A, 0.001, 0.01mA, 0.001A
  Accuracy: AC: ±(0.6% rdg. + 25 dgt.) (50/60Hz);
  DC: ±(0.15% rdg. + 20 dgt.)
• Resistance Range: 50, 500Ω, 5, 50, 500kΩ, 5, 50MΩ
  Resolution: 0.001, 0.01Ω, 0.0001, 0.001, 0.01kΩ, 0.01, 0.001MΩ
  Accuracy: ±(0.05% rdg. + 10 dgt.)
• Capacitance Range: 5, 50, 500nF, 5, 50, 500F, 10mF
  Resolution: 0.001, 0.01, 0.1nF, 0.001, 0.01, 0.1F, 0.01mF
  Accuracy: ±(2% rdg. + 40 dgt.)
• Frequency Range: 50, 500Hz, 5, 50, 500kHz, 5, 10MHz
  Resolution: 0.001, 0.01Hz, 0.0001, 0.001, 0.01kHz, 0.0001, 0.001MHz
  Accuracy: ±(0.01% rdg. + 10 dgt.)
• Temperature Range: -50 to 1000°C (-58 to 1832°F)
  Resolution: 0.1°C (0.1°F)
  Accuracy: ±(1.0% rdg. + 2.5°C (4.5°F)
