Test Equipment:

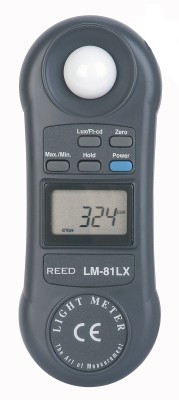

REED LM-81LX AutoRanging Light Meter

Autoranging light meter designed for one-handed operation.

This compact light meter is capable of taking Footcandle (Fc) and Lux measurements. The LM-81LX is an autoranging instrument that keeps track of minimum and maximum readings and features both a data hold function and zero adjustment button.

Features:

Designed for one hand operation and to fit easily into a tool belt or pocket
Auto-ranging
User selectable Lux/Foot-candles
Min/Max and Data hold function
Auto shut off and zero adjustment button
Over range and low battery indication
Battery included
NIST Traceable Certification Available

Specifications:

Range: 0 to 20,000 lux; 0 to 2,000 Fc
Resolution: 1, 10 lux; 0.1, 1 Fc
Accuracy: ±5% of reading
Sampling Rate: 1 time/second
Power Supply: Single 9V battery
Dimensions: 6.1 x 2.4 x 1.3" (156 x 60 x 33mm)
Weight: 5.6 oz (160g)
Spec Sheet (PDF)

NIST Traceable Certification Available

NIST Traceable Certification Available - (Optional)

Note: NIST Certification may delay shipment by 1 - 3 Days.

Orders over $300 ship FREE to 48 States

REED LM-81LX
Light Meter
RD-LM-81LX
$89.00

REED LM-81LX
Light Meter w/ NIST
RD-LM-81LX-NIST
$327.60

Soft Carrying Case
7" x 3" x 2"
RD-CA-52A
$25.00
