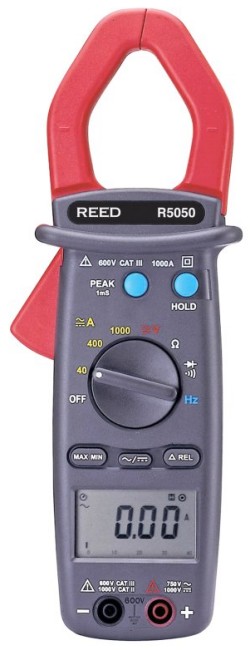

REED R5050
True RMS 1000A AC/DC
Clamp Meter
Professional grade
True RMS AC/DC clamp meter with peak hold function and digital
analog bargraph.
This durable True RMS clamp meter is capable
of measuring AC/DC current and voltage, resistance and frequency.
Featuring a 4,000 count LCD display with a
42-segment analog bargraph, the R5050 includes a peak hold
and min/max functions.
|
|
Features:
- True RMS measurements
- 3-3/4 digit LCD with high-speed,
42-segment bar graph
- Max/Min and Data Hold functions
- Peak Hold function
- Frequency measurement
- Diode and continuity test with beeper
- Polarity and overload indications
- Auto or manual ranging
- Auto power-off
- Low battery indication
- Conforms to EN61010 1000V Cat. II,
600V Cat. III
-
NIST Traceable Certification
Available
- Includes: TL-88-1 test leads,
6AM6X battery and
CA-05A carrying case
Specifications:
- Current Range: 40A, 400A, 1000A AC/DC
Resolution: 0.01A, 0.1A,
1A AC/DC
Accuracy: AC: ±(1.9% rdg.
+5 dgt.); DC: ±(2.5% rdg. +10 dgt.)
- Voltage Range:
AC: 400V, 750V;
DC: 400V, 1000V
Resolution: 0.1, 1V AC/DC
Accuracy:
AC: ±(1.5% rdg. +5 dgt.);
DC: ±(1% rdg. +2 dgt.
- Resistance Range: 400Ω, 4000Ω
Resolution: 0.1Ω, 1Ω
Accuracy: ±(1% rdg. +3 dgt.)
- Frequency Range: A & V:
4kHz, 10kHz
Resolution: 1Hz, 10Hz
Accuracy:
A-Hz: ±(0.1% rdg. +1 dgt.) (20Hz-10kHz);
V-Hz: ±(0.1% rdg. +1 dgt.)
(10Hz-10kHz)
- Continuity Range: < 100Ω
- Test Current Range: 1.7 mA max.
- Power Supply: Single 9V battery
- Battery Life: Approx. 100 hours
- Jaw Opening: 40mm (1.57 in.)
- Dimensions: 242 x 66 x 36mm (9.5 x 2.6 x 1.4")
- Weight: 400g (10 oz)
|
>>
