REED

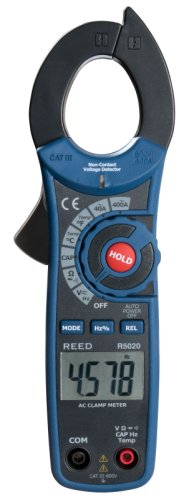

R5020 400A AC Clamp Meter w/ Temperature
Compact AC clamp
meter with built-in non-contact voltage detector and contact
thermometer
This compact autoranging clamp meter is
capable of measuring AC current, AC/DC voltage, resistance,
frequency, capacitance, duty cycle and temperature.
Featuring double molded plastic housing, the
R5020 includes diode check and continuity functions and a
non-contact voltage detector built into the clamp tip.
|
|
Features:
- Measures AC current, AC and DC voltage, resistance,
capacitance, as well as temperature with
the included Type K thermocouple probe
- Diode test and continuity check
- 4000-count LCD displays low battery and overrange
indications
- UL approved
- Cat. III 600V safety rating
-
NIST Traceable Certification
Available
- Includes: one set of test
leads, one temperature probe,
batteries, and a soft carrying case.
Specifications:
- AC Current Range: 40.00, 400.0 A
Accuracy:
±(2.5% rdg. + 8 dgt.)
- DC Voltage Range: 400.0mV, 4.000, 40.00, 400.0,
600.0V
Accuracy:
±(1.5% rdg. + 2 dgt.)
- AC Voltage Range: 4.000, 40.00, 400.0, 600.0V
Accuracy:
±(1.8% rdg. + 8 dgt.)
- Resistance Range: 400.0Ω, 4.000, 40.00, 400.0kΩ,
4.000, 40.00MΩ
Accuracy:
±(1.5% rdg. + 2 dgt.)
- Capacitance Range: 40.00, 400.0nF, 4.000, 40.00,
100.0μF
Accuracy:
±(3% rdg. + 5 dgt.)
- Temperature Range: -20.0 to 760.0°C
(-4.0 to 1400.0°F)
Accuracy:
±(3% rdg. + 5°C/9°F)
- Jaw Opening: 1.2" (30mm) maximum
- Power Supply: 2 x 1.5V "AAA" batteries
- Dimensions: 200 x 66 x 37mm
- Weight: 205g
|
>>
R5020 DataSheet
>>
R5020 Manual (PDF) |
