REED
R4000SD

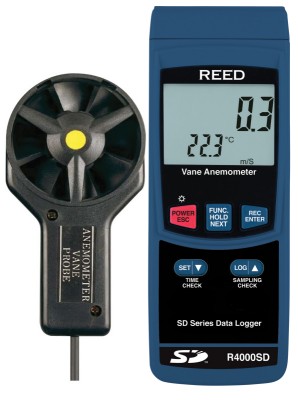

Data Logging Vane Thermo-Anemometer
Real time data
logger with integrated SD memory card measures/records air velocity,
air temperature and contact temperature with an integrated Type
J/Type K thermocouple input.
The R4000SD measures air velocity, air
temperature and has a built-in contact thermometer. Featuring
automatic temperature compensation, Data hold, Max/Min functions,
and an easy-to-read backlit LCD display.
Using a SD card (max 16GB), a user can
manually record up to 99 readings or automatically by selecting a
desired sampling rate from 1 to 3600 seconds. Quickly generate an
Excel file with raw data, all without the use of software.
Optional accessories include a tripod and AC
adapter for continuous long-term monitoring. |
|
Features:
(Replaces
Model SD-4207)
- Measures air velocity (fpm, m/s, kph, mph and knots) and air
temperature
- Contact temperature measurement with type J/K thermocouple
(optional)
- Thermistor sensor for fast air temperature readings
- Low friction ball-bearing, rotating vane probe ensures high
accuracy readings
- Real-time data logger with integrated SD memory card
- User selectable sampling rate from 1 to 3600 seconds
- Easy-to-read backlit LCD display
- Data hold and Min/Max functions
- Tripod mountable for long-term
monitoring
- Low battery indicator and auto shut off
- R4000SD
Includes: Data Logging Vane Thermo-Anemometer, Vane
Probe, Batteries & Hard Carrying Case
- R4000SD-KIT
Includes: R4000SD items, plus 16GB Micro SD
Memory Card & AC Power Adapter
- R4000SDKIT2
Includes: R4000SD-KIT items plus Tripod
Specifications:
- Measuring Ranges: fpm: 79 to 5906
m/s: 0.4 to 30
km/h: 1.4 to 108
mph: 0.9 to 67.1
knots: 0.8 to 58.3
- Air Temperature: 32 to 122°F (0 to
50°C)
- Type K Temperature: -148.0 to
2372.0°F (-100.0 to 1300°C)
- Type J Temperature: -148.0 to
2192.0°F (-100.0 to 1200°C)
- Accuracy:
Air Velocity: ±(2% rdg + 40 fpm, 0.2 m/s, 0.8 km/h, 0.4
mph, 0.4 knot)
Air Temperature: ±0.8°C (1.5°F)
Contact Temperature: ≥-58°F (-50°C) ±(0.4% + 1°F
(0.5°C)) ≤-58°F (-50°C) ±(0.4% + 1.8°F (1°C))
- Resolution: fpm: 1
m/s, km/h, mph, knot: 0.1
- Temperature: 0.1°F/°C
- Vane Diameter: 2.8"
(72mm)
- Response Time: <1 second
- Display: 5-digit, Dual LCD Display
- External Memory: up to 16GB with
SD card (optional, included in Kits)
- Power Supply: 6 x AA Batteries (or
AC Adapter included in Kits)
- more >>
Spec Sheet
(PDF)
|
R4000SD-KIT
R4000SD-KIT2 |
