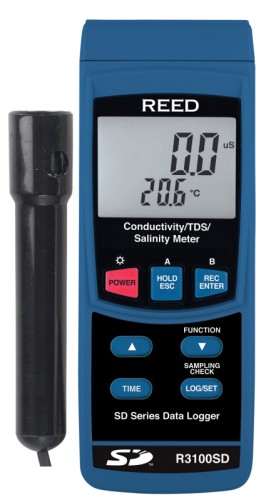

REED R3100SD Conductivity/TDS/Salinity Meter Datalogger
Real-time data logger
with integrated SD memory card measures/records conductivity, total
dissolved solids (TDS) and salt levels in water with automatic
temperature compensation.
The R3100SD features Data hold, Max/Min
functions, and an easy-to-read backlit LCD display. Using a SD card (max
16GB), a user can manually record up to 99 readings or automatically by
selecting a desired sampling rate from 1 to 3600 seconds.
Quickly generate an Excel file with raw data, all
without the use of software. Optional accessories include a tripod and
AC adapter for continuous long-term monitoring. |
|
Features:
(Replaced SD-4307)
-
Measures conductivity, total dissolved solids
(TDS) and salt levels in water
-
Automatic temperature compensation
-
Real time data logger with integrated SD memory card
(optional)
-
User selectable sampling rate
-
Easy-to-read backlit LCD display
-
Data hold and Min/Max functions
-
Tripod mount for long-term monitoring
-
Low battery indicator and auto shut off
- R3100SD includes: Data Logging
Conductivity/TDS/Salinity Meter, Conductivity/TDS/Salt Probe,
Batteries & Hard Carrying Case
-
NIST Traceable Certification
Available
- R3100SD-KIT includes: R3100SD
Data Logging Conductivity/TDS/Salinity Meter, 16GB Micro SD Memory
Card with adapter, AC Power Adapter and R1430 Conductivity Standard
Solution
Specifications:
- Conductivity Range: 200μS/cm, 2mS/cm, 20mS/cm, 200mS/cm
Resolution: 0.1μS, 0.001mS, 0.01mS, 0.1mS
Accuracy: ±(2% f.s. +1 digit)
- TDS Range: 200, 2000, 20,000, 200,000 ppm
Resolution: 0.1, 1, 10, 100 ppm
Accuracy: ±(2% f.s. +1 digit)
- Salinity Range: 0 to 12% salt (% weight)
Resolution: 0.01% salt
Accuracy: ±0.5% salt
- Auto Sampling Time: Auto, 1 second to 9 hours
- External Memory:
Up to 16 GB with Micro
SD Card (optional)
- Power Supply: 6 x AA batteries
or AC Adapter (optional)
- Dimensions: 7.0 x 2.7 x 1.9 in
- Weight: 1.1 lb
-
>>
Full Spec Sheet (PDF)
|
