R3000SD Kits:
R3000SD-KIT
R3000SD-KIT2
R3000SD-KIT3
|
REED

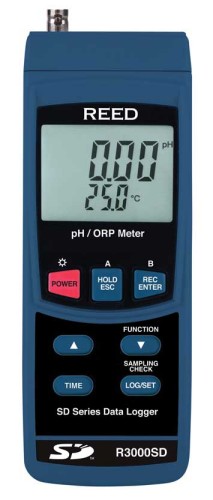

R3000SD PH/ ORP Meter/ Datalogger
Real-time data
logger with integrated SD memory card measures/records pH and ORP
levels in water with manual or automatic temperature compensation.
The R3000SD is capable of measuring
0.00 to 14.00 pH and 0 to 1999 mV (ORP). Featuring automatic
temperature compensation, Data hold, Max/Min functions, and an
easy-to-read backlit LCD display.
Using a SD card (max 16GB), a user can
manually record up to 99 readings or automatically by selecting a
desired sampling rate from 1 to 3600 seconds. Quickly generate an
Excel file with raw data, all without the use of software.
Optional accessories include a tripod and AC
adapter for continuous long-term monitoring.
Please note pH and ORP
electrodes are sold separately. |
|
Features:
(Replaced SD-230)
- Measures pH and ORP levels in water
- Manual or automatic temperature compensation (with optional
ATC probe, R3000SD-ATC)
- 3-point calibration ensures best accuracy
- Accepts pH/ORP Electrodes with BNC connector
- Real time datalogger with integrated SD memory card
(optional)
- User selectable sampling rate
- Easy-to-read backlit LCD display
- Data hold and Min/Max functions
- Tripod mount for long-term monitoring
- Low battery indicator and auto shut off
- R3000SD includes: Data Logging
pH/ORP Meter, Batteries & Soft Carrying Case.
-
NIST Traceable Certification
Available
- R3000SD-KIT includes: R3000SD
Data Logging pH/ORP Meter, R3000SD-PH2 General Purpose
Electrode, & R3000SD-ORP Professional ORP Electrode.
- R3000SD-KIT2 includes: R3000SD
Data Logging pH/ORP Meter, R3000SD-PH2 pH Electrode, R3000SD-ORP
ORP Electrode, R1404 4pH Buffer Solution and R1407 7pH Buffer
Solution.
- R3000SD-KIT3 includes: R3000SD
Data Logging pH/ORP Meter, R3000SD-PH2 pH Electrode, R3000SD-ORP
ORP Electrode, R3000SD-ATC ATC Temperature Probe, 16GB Micro SD
Memory Card and AC Power Adapter
Specifications:
- pH Range: 0 to 14.00 pH
Resolution: 0.01 pH
Accuracy: ±(0.02 pH+ 2 digits)
- ORP mV Range:
-1999 to 1999 mV
Resolution: 1.0 mV
Accuracy: ±(0.5% f.s.
+
2 digits)
- pH Electrode Compatibility:
Any pH electrode with BNC connector
- Memory Card: Accepts up to 16 GB
Micro SD Card (optional)
- Power Supply: 6 x 1.5V AA batteries
or AC Adapter (optional)
- Dimensions: 7.0 x 2.7 x 1.9 in
- Weight: 1.1 lb
|
Full Spec Sheet (PDF) |
