REED RINDUST-KIT
Industrial Combo Kit

Test Equipment:

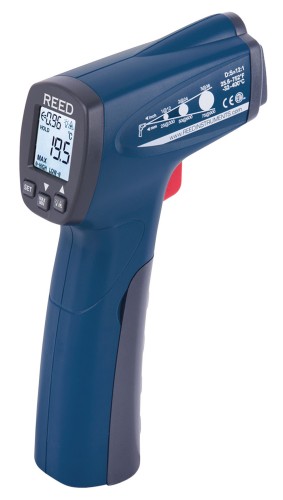

REED R2300 IR Thermometer -
12:1 Ratio, 752F (400C)

Fast responding entry-level infrared thermometer with min/max temperature readings and adjustable high/low temperature alarms.

This infrared thermometer features a 12:1 distance to spot ratio and is capable of measuring temperatures up to 752�F (400�C).

The R2300 is an affordable non-contact measurement solution able to quickly and efficiently measure the temperature of hot, hazardous or hard-to reach objects from a safe distance.

Features:

Built-in laser pointer identifies target area
User selectable �F or �C
12:1 distance to spot size ratio
Digitally adjustable emissivity
Max and Min readings
Backlit display
High and low alarms
Low battery indication and auto shut off

Specifications:

Temperature Range: -25.6 to 752�F (-32 to 400�C)
Accuracy: �4�F (2�C) or �2% rdg.
Resolution: 0.1�F (0.1�C)
Optical Resolution (D:S): 12:1
Spectral Response: 8 to 14�m
Emissivity: 0.1 to 1.0 (Adjustable)
Response Time: 500ms
Backlit Display: Yes
Display Hold: Yes
High/Low Alarms: Yes
Alarm Indicators: Yes (Beeping)
Max/Min: Yes
F/C Switchable: Yes
Laser Type: Class II
Low Battery Indicator: Yes
Power Supply: 9V battery
Product Certifications: CE, ETL, RoHS
Battery Life: Approx. 10 hours (with continuous use, backlight on)

R2300 DataSheet (PDF)

NIST Traceable Certification Available

NIST Traceable Certification Available - (Optional)

Note: NIST Certification may delay shipment by 1 - 3 Days

Orders over $300 ship FREE to 48 States

REED R2300 Infrared Thermometer
RD-R2300
$59.00

REED R2300 Infrared Thermometer w/NIST
RD-R2300-NIST
$204.00

* * * * * * *
