Scale-Link USB3
Scale Dimensions into any Windows Program!
 The
industry standard take-off tool
for entering linear measurements from your blueprints, maps, or plans
into any Windows program.
Just roll the scaler
wheel along your print, then click to instantly
transfer the measurement into your program.
Scale-Link USB3 includes
the scaler wheel, connecting cable and
transfer software.
Features:
- 111 of the most common Architectural, Engineering, Map and
Metric scale-factors built in
- Thousands of available user-defined scale-factors
- Calculate auto-scale factors from reduced,
enlarged or odd-scale drawings
- Create any custom scale-factors for reduced, enlarged or unknown
scale prints
- Create, store and retrieve 2 user-defined
scale factors
- Calculates square and cubic dimensions for
regular areas and volumes
- Counter and adder buttons on probe tip let
you count items or add fixed lengths as you scale
- Measures in kilometers, meters, centimeters,
feet, yards, miles and inches.
- Clear, audible tone indicates wheel movement
- Automatic shut-off assures long battery life
- Low battery indicator
- PlanWheel can be used stand-alone in the field or interface to
your PC with supplied USB cable
Scale-Link is specially suited
for:
- All Windows construction
estimating software
- With the Scalex Corporation "Ready Connect"
software (included in Scale-Link), you can use the
Scale-Link USB3
with any Windows-based estimating program, including:
- Excel®, Quatro Pro®,
Lotus 1-2-3® and other spreadsheets
- Access®, dBase®,
Paradox®, Foxpro®, and other databases
- Many
of the leading estimating software companies have integrated the
Scalex Planwheels directly into their respective estimating programs
and are certified as "Scalex-Ready". With these products, you
do not need the Ready-Connect software - just plug in your PlanWheel
and go. These include:
- Accubid Systems
- Buildsoft
- Cert-In Software Systems
- Comput-Ability
- ConEst Software Systems
- Jaffe Software Systems
- Vision Infosoft Corporation

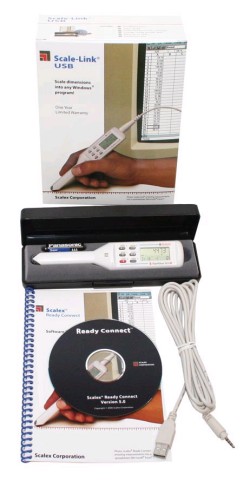

 Scale-Link
USB 3
Includes:
- PlanWheel XLU3™ Scaler
- Ready Connect™ Software
- USB Cable
- Protective Case
- One Year Warranty
- User Manual
Specifications:
- Cable Length: 2.5 meters
(8 ft.)
- Built-in Scale Factors:
111
- User Defined Scale
Factors: Thousands
- Accuracy: + 0.25%
- Resolution: 1.0 mm (.04")
- Wheel Sense: +, -, +-
(selectable)
- Batteries: 2 AAA
(Included)
- Battery Life: 100-400 hrs
(continuous use)
2 to 6 months (standby)
-
spec sheet
(110 kb)
System Requirements:
- Windows® Compatible
Computer
- CD-ROM Drive
- USB Port
- 2 MB Hard Disk Space
