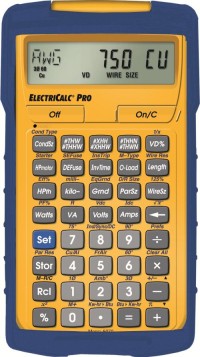

ElectriCalc Pro
Electrical Calculator
|
National Electrical Code (NEC) Calculator
For
Electrical Contractors, Designers, Electricians
& Engineers
|
|
** Now Updated to
2023 NEC
** |
 Compliant with
2023,
2020,
2017, 2014, 2011, 2008,
2005, 2002, 1999, 1996 NEC®
and
updateable for future
code revisions.
Complete wire sizing, integrated voltage drops
solutions and conduit sizing solutions: finds motor full-loads,
computes fuse and breaker sizes and size overload protection.
Electrical Contractors, Designers,
Electricians and Lighting Specialists solve tough electrical
calculations in seconds and deliver those solutions in conformance
with the latest NEC®.
Saves time, reduces material cost
and eliminates code violations on electrical design, estimating and
construction jobs.
The ElectriCalc® Pro is a complete electrical
reference tool that will save time, trouble and money.
Update to
future NEC® updates with an easy-to-install kit. Includes
FREE
Armadillo
Gear™ protective Hard Case.
It helps you solve for:
- Wire Sizes
- Integrated Voltage Drop
- Conduit Sizing
- Motor Full-Load Amps
- Fuse and Breaker Sizes
- NEC® Table Number displayed when performing
Wire Size calculations
- Service and Equipment Grounding Conductor
Sizes
- Enter BTU to find Kilowatts per Hour
- Enter Kilowatts per Hour to find BTU
Parallel Resistance
- Ohm’s Law Calculations – enter any two
values to solve for the third
- Circular MILS wire sizes
ElectriCalc Pro
Features:
-
Solve Electrical Math Problems
(e.g., Volts, Amps, Volt-Amps, Watts, kVA, kW, PF%)
-
Average Voltage Drop
Calculations
-
Copper or Aluminum Wire Sizes
-
Figure Parallel and Derated
Wire Sizes
-
Grounding Conductor Sizes
-
Motor Full-Load Amps
-
Overload Protection Sizes
-
NEMA Starter Sizes
-
Conduit Sizes
-
Works as a Regular Calculator
-
Durable and Portable
The
ElectriCalc Pro Electrical Calculator helps you:
- Solve Electrical Problems Instantly
- Carry NEC References with You
- Save Time, Improve Productivity
- Cut Costs & Errors
- Improve Safety
The ElectriCalc Pro is an invaluable calculator for today's busy
electrical professional. It's a complete NEC Reference Tool that
puts electrical/wiring answers at your fingertips! And, it's
updateable for future NEC revisions!
Unlike a regular calculator, the ElectriCalc Pro has intuitively
labeled "electrical keys" and conforms to the National Electrical
Code, allowing you to solve Code-related problems quickly and
accurately. Common NEC tables are built in, providing instant
solutions for the following:
- Solve Electrical Math Problems Instantly
Solve for volts, amps, volt-amps, watts, kVA, kW, PF%, EFF%, and
DC resistance.
- Copper or Aluminum Wire Sizes
Calculates wire sizes per NEC 310-16 & 310-17. Copper or aluminum,
30/10, 60°C, 75°C, 90°C insulation ratings at 100% or 125% of
ampacity. Adjusts wire sizes for ambient temperatures other than
30°C and for more than three wires in a raceway.
- Parallel & Derated Wire Sizes
One-button parallel & derated wire sizing.
- Voltage Drop Calculations
It's a Voltage Drop Calculator -
Lets you find: minimum voltage drop wire size, max. length for any
given wire size and drop percentage, actual number and percentage
of volts dropped.
- Grounding Conductor Sizes
Calculates service and equipment grounding conductor sizes per NEC
Tables 250-66 & 250-122.
- Find Motor Full-Load Amps per NEC
Works in 1Ø and 3Ø with the new expanded tables for 3Ø induction
(to 500 HP) and synchronous (to 200 HP) motors per NEC 430-148 and
430-150.
- Computes Fuse & Breaker Sizes per NEC 430-152
Built-in solutions for: single and dual element fuses,
instantaneous trip breakers and inverse time breakers.
- Sizes Overload Protection per NEC 430-32
- Automatically Finds NEMA Starter Sizes
- Conduit Sizing for 12 Types of Conduit!
Per NEC Tables 1, 3, 4, and 5 of Chapter 9, allows sizing of
all common conduits for any combination of #THW, #XHHW and #THHN
Wires. Plus, gives fill percentages, cross-sectional areas,
remaining areas and more.
- Works as a Regular Calculator
- Durable and Portable
Includes:
-
Free Armadillo Gear protective case
-
Battery saving Auto Shut-Off
-
Easy-To-Follow User's Guide
-
Long-life Battery (1CR-2032)
-
Full 1-year Warranty
ElectriCalc Pro
Specifications:
- Size:
5.5 x 3.0 x 0.5" (140 x 76 x 13 mm)
- Product Weight (product only with battery):
3.2 oz. (91 g)
- Power:
3-volt lithium (CR-2032) battery (included)
- Bat. Life:
Approx. 800 hours usage
- Auto Shut-off:
8-12 min.
- Keypad:
42 keys; soft-touch silicone rubber
- User's Guide:
62 pp.; 5.0 x 2.5" (127 x 64 mm).
- Warranty:
1-Year Limited Warranty
- Case:
FREE Hard Cover/Case
- Operating Temperature:
32-130 deg. F (0-55 deg. C)
- Display Type:
LCD segment; 8 digits, with annunciator-legends
- Display Dimensions:
0.86 x 2.5" (22 x 64 mm)
- Accuracy:
10 digit internal accuracy
