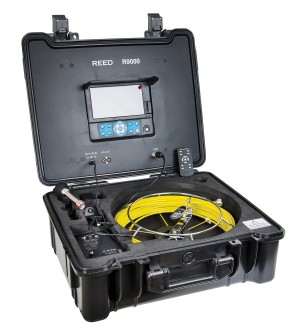

The R9000 Pipe Video Inspection System is a form of
non-destructive testing used to visually inspect the interiors of
pipelines. A common application is to determine the condition of
small diameter sewer lines and household connection pipes.
 Features:
- Cost effective portable inspection camera designed to
deliver quality video inspection in a wide range of applications
including: sewers, building ducts/piping, wells, and power
plants
- System includes camera head, cable reel, battery pack and
DVR
- Camera head contains 12 white LED lights, a flexible
spring coiled joint to navigate corners, a scratch-resistant
sapphire lens cover and a stainless steel housing that allows
the camera to withstand various hits
- High resolution CCD chip is designed to capture
bright, crisp, colour video of the inspection area
- 7" TFT LCD display presents a live crisp colour image at
your fingertips
- Cable reel is mounted and rotatable in the case, therefore
the fibreglass rod cable can be pushed in and out without the
need to hold the reel
- Sun visor is included to act as a sun shield for outdoor
inspections
Specifications:
CAMERA
- Sensor: 1/3" Sony CCD
- TV-Line: 420 TV-Line
- View Angle: 140°
- Focus Distance: 20cm (approx)
- Depth-of-View: 100cm (approx)
- Camera Size: 23mm x 45mm
- Camera Length: 120mm
- Lighting: Built-in12 white LED
- Waterproof: 20m water (camera fixed on cable)
- Power Supply: 12VDC
CABLE WHEEL
- Cable Diameter: 5.2mm
- Cable Length: 20m
DVR
- Screen: 7" 16:9 high-definition colour LCD
- Resolution: 800 x 480 RGB
- Video Resolution: PAL 720 x 576 25 FPS Max; NTSC 720 x
488 30 FPS Max
- Photograph: 720 x 480/720 x 576
- Output: TV and Audio
- External Memory: Supports SD memory card up to 32GB
- Data Output: USB 2.0 to PC
- Play Back: Video, Photo and Audio
- Power Supply: DC 6~12V input
BATTERY PACK
- Power Input: DC 9~12V
- Battery Capacity: DC 7.4V 6600mAh Li-ion battery
- Power Output: DC 6~12V & DC 5V
- Running Time: 7 hour (Record), 9 hour (Play Back)
- Charge Time: 8 hour
