REED

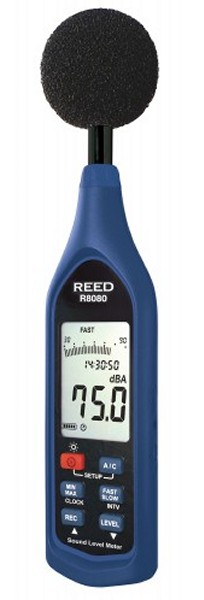

R8080 Sound Level Meter / Data Logger
Quick responding triple range sound
level meter with large backlit display, built-in memory to data log
up to 64,000 points and the ability to graph in real time with
included software.
This data logging sound level meter has the ability to record samples on internal memory and
keep track of registered readings with a time and date stamp.
The R8080 features
user selectable sampling rates and the option to track live
measurements via the included PC interface software.
|
|
Features:
- Meets IEC 61672-1
Class 2 requirements.
- Records up to
64,000 datapoints (1MB)
- 60dB dynamic space in
each range
- Real time clock and
calander
- Fast/Slow time
weighting
- "A & C"
frequency weighting
- Min/Max function
- USB Interface
- Low level battery
indicator
- Analog digital
bargraph
- Backlit LCD display
- Tripod mount design
for longterm monitoring
- Includes:
windscreen, USB cable, Windows software, batteries and hard
carrying case
-
NIST Traceable Certification
Available
Specifications:
- Measuring Range: Low: 30 to 90 dB;
Med: 50 to 110 dB; High:
70 to 130 dB
Auto: 30 to 130 db
- Dynamic Range: 60
dB
- Accuracy: ±1.4 dB
- Resolution:
0.1 dB
- Sample Rate: Digital: 0.5 sec. Analog: 50 mS
- Frequency Range: 20 Hz to 8
kHz
- Time Weighting: Fast/Slow
- Microphone: 1/2" electret condenser
- Power Supply: 4 x
AAA batteries
- Battery Life: 50 hours
- Operating Temperature: 32 to 104°F (0 to
40°C)/<80% RH
- Memory: Up to 64,000 records (1MB)
- Dimensions: 10.4 x 2.5 x 1.2"
(264 x 63 x 29mm)
- Weight: 8.8 oz (250g)
|
Spec Sheet (PDF) |
|
 |
NIST
Traceable Certification Available -
(Optional)
Note: NIST
Certification may delay shipment by 1 - 3 Days
