REED
R3002 Manometer, 5 PSI
Records maximum,
minimum, average and relative measurements

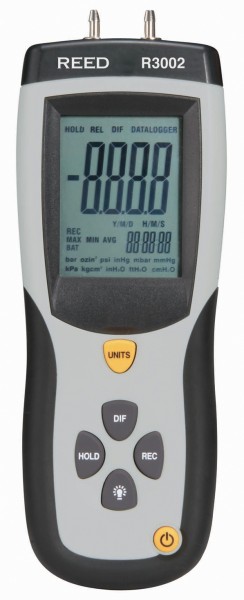

The R3002
digital manometer provides accurate measurements in 11 different
units of measure and is capable of taking gauge and differential
pressure.
It features a large
backlit LCD display, an integrated clock to keep track of
measurements and the ability to record and revisit recorded data via
the included software.
|
|
Features:
- Measures gauge and differential pressure up to 5psi
- 11 selectable units of measure: psi, inH2O, bar,
mbar, kPa, inHg, mmHg, ozin, ftH2O, cmH2O, kgcm
- Max, Min, Avg, Relative and Data hold functions
- Integrated real-time clock time-stamps measurements
- Large, easy-to-read backlit LCD display
- Zero button for offset correction or measurement
- USB interface and software included
- Tripod mount for long-term monitoring
- Low battery indicator and auto shut offUSB interface
- Includes: USB cable,
software, tubing, hard carrying case and battery
-
NIST Traceable Certification
Available
Specifications:
- Pressure Range: 5.000 psi; 138.3
inH2O; 344.7 mbar; 34.47 kPa; 1.018 inHg; 258.5 mmHg; 80.00
ozin2; 11.53 ftH2O; 351.5 cmH2O; 0.351 kgcm2; 0.344 bar
- Resolution: 0.001 psi; 0.1 inH2O;
0.1 mbar; 0.01 kPa; 0.001 inHg; 0.1 mmHg; 0.01 ozin2; 0.01
ftH2O; 0.1 cmH2O; 0.001 kgcm2; 0.001 bar
- Accuracy: ±0.3% f.s.
- Repeatability: ±0.2% f.s.
- Hysteresis: ±0.29% f.s.
- Maximum Pressure: 20 psi
- Response Time: 0.5 second
- Power Supply: Single 9V alkaline battery.
-
