Reed Instruments - Test and Measurement Equipment

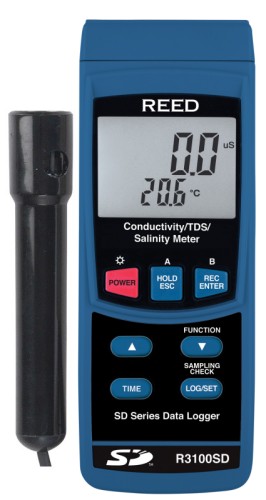

REED R3100SD Conductivity/TDS/Salinity Meter Datalogger

Real-time data logger with integrated SD memory card measures/records conductivity, total dissolved solids (TDS) and salt levels in water with automatic temperature compensation.

The R3100SD features Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds.

Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.

 Features:                    (Replaced SD-4307)

  • Measures conductivity, total dissolved solids (TDS) and salt levels in water
  • Automatic temperature compensation
  • Real time data logger with integrated SD memory card (optional)
  • User selectable sampling rate
  • Easy-to-read backlit LCD display
  • Data hold and Min/Max functions
  • Tripod mount for long-term monitoring
  • Low battery indicator and auto shut off
  • R3100SD includes: Data Logging Conductivity/TDS/Salinity Meter, Conductivity/TDS/Salt Probe, Batteries & Hard Carrying Case
  • NIST Traceable Certification Available
  • R3100SD-KIT includes: R3100SD Data Logging Conductivity/TDS/Salinity Meter, 16GB Micro SD Memory Card with adapter, AC Power Adapter and R1430 Conductivity Standard Solution

Specifications:

  • Conductivity Range: 200μS/cm, 2mS/cm, 20mS/cm, 200mS/cm
       Resolution: 0.1μS, 0.001mS, 0.01mS, 0.1mS
    Accuracy: ±(2% f.s. +1 digit)
  • TDS Range: 200, 2000, 20,000, 200,000 ppm
       Resolution: 0.1, 1, 10, 100 ppm
       Accuracy: ±(2% f.s. +1 digit)
  • Salinity Range: 0 to 12% salt (% weight)
       Resolution: 0.01% salt
       Accuracy: ±0.5% salt
  • Auto Sampling Time: Auto, 1 second to 9 hours
  • External Memory: Up to 16 GB with Micro SD Card (optional)
  • Power Supply: 6 x AA batteries or AC Adapter (optional)
  • Dimensions: 7.0 x 2.7 x 1.9 in
  • Weight: 1.1 lb
  • >> Full Spec Sheet (PDF)

REED R3100SD Conductivity/TDS/Salinity Meter Datalogger
R3100SD-KIT includes: R3100SD Data Logging Conductivity/TDS/Salinity Meter, 16GB Micro SD Memory Card with adapter, AC Power Adapter and R1430 Conductivity Standard Solution
R3100SD-KIT

NIST Traceable Certification Available

NIST Traceable Certification Available - (Optional)

Note: NIST Certification may delay shipment by 1 - 3 Days

Orders over $300 ship FREE to 48 States




R3100SD Conductivity Meter Datalogger

RD-R3100SD
$296.10

REED R3100SD Conductivity Meter Datalogger


R3100SD Conductivity Meter w/ NIST

RD-R3100SD-NIST
$485.10

REED R3100SD Conductivity Meter Datalogger w/ NIST



R3100SD-KIT Conductivity Meter Datalogger Kit

RD-R3100SD-KIT
$323.10

REED R3100SD-KIT Conductivity Meter Datalogger Kit

Orders over $300 ship FREE to 48 States
