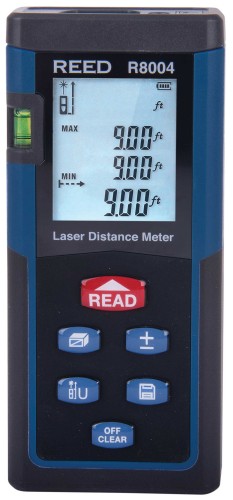

REED R8004 Laser Distance Meter, 131' (40m)

DISCONTINUED

SEE: REED R8010 Laser Distance Meter

The REED R8004 laser distance meter measures up to 131 feet (40 meters) and features a backlit multi-line LCD display and the ability to calculate area, volume and sum of lengths.

The R8004 is designed for one handed operation and is capable of retaining maximum and minimum readings and up to 30 measurements in memory.

Features:

• Designed for one-handed operation
• User selectable unit of measure (imperial/metric)
• Laser target pointer
• Reference point selection (front or rear of instrument)
• Backlit multi-line LCD display
• Area, Volume and Max/Min functions
• Addition, Subtraction and indirect 2/3 point (Pythagoras) calculations
• Integrated bubble level
• Continuous measurement mode
• Internal memory saves up to 30 readings
• Low battery indicator and auto shut off
• NIST Traceable Certification Available

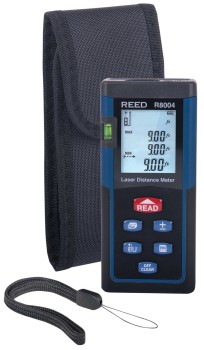

• Includes: Laser Distance Meter, Wrist Strap, Batteries & Carrying Case

Applications:

• Measuring conduit and wire lengths
• Light Retrofitting Projects
• Piping/exhausts/ventilation and equipment installation
• Conduit layout and installation
• Air ventilation and duct work positioning
• Air volume calculations
• Hot/cold water piping locations
• Determining wire length and duct sizing
• Floor plans
• Network room layout

Specifications:

• Measuring Range: 131' (40m)
• Accuracy: +/- (5.0mm+d x 5/100000)
• Measuring Units: m, in, ft
• Sensor Type: Laser
• Laser Type: 630 to 670nm, <1mW
• Display: LCD (multi-line)
• Backlit Display: Yes
• Start Point Selection: Yes (Front/Back)
• Reading Mode: 2 (Single/Continuous)
• Maximum and Minimum Functions: Yes
• Calculation Functions: Addition, Subtraction, Area, Volume, Sum of Lengths, 2 point indirect (pythagoras), 3 point indirect
• Internal Memory: Yes (up to 30 readings)
