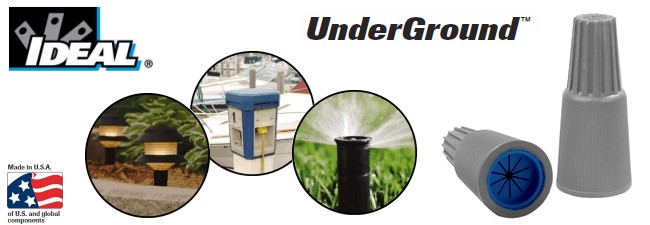

Ideal UnderGround Below Grade/Direct Burial Wire Connectors

UnderGround Brochure (PDF)

IDEAL UnderGround Wire Connectors are specifically designed to secure and protect wire connections in a wide variety of wet location/direct burial applications.

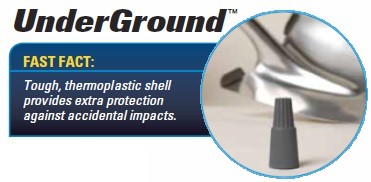

UnderGround connectors are manufactured with an extra-thick, thermoplastic shell for extreme durability and reliable connections.

These connectors are made tough and have been designed to exceed the rigorous test standards of UL 486D.

The easy application process delivers quick, safe and long-lasting connections in harsh wet location and direct burial applications.

Quick and easy application saves time and energy, eliminating the need for heat shrink, resin-packs, and multi-step corrosion kits.

Features:

• Silicone-based sealant protects against moisture and corrosion
• UL listed to 486D for use for direct burial
• Easy to apply pre-filled twist-on wire connectors
• Handles wire sizes from #20 to #6 AWG copper conductors
• Expanding, live-action square-wire spring for fast, secure and long-lasting connections
• No pre-twisting required
• Deep skirt provides superior moisture resistance to protect connections
• Tough, UL 94V-2 flame-retardant shell rated at 105C (221F)

Applications:

• Outdoor Facility Lighting
• Landscape Lighting
• Traffic Controls
• Parking Lot & Street Lighting
• Sump & Well Pump Installations
• Lawn-sprinkler control systems
• Valve Control Boxes
• Marine Installations
• Golf Course Installations
• Note: For Use on Copper Wire Only. Do Not Use on Aluminum Wire. - One Time Use Only - Do Not Reuse Connector. - Not for Use in Continuous Submersion Applications

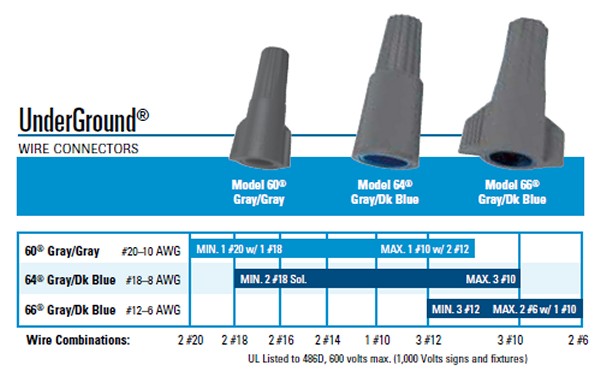

Listed Wire Combinations

California residents see Prop 65 WARNINGS

Model 60 Gray/Gray
$25.95	25 pcs pkg	Underground Wire Connector, 60, Gray/Gray, 25/pkg ID-30-1160 (3 pkgs Available)
