Ideal WeatherProof Wire Connectors

WeatherProof Brochure (PDF)

IDEAL WeatherProof Wire Connectors are suited for interior and exterior electrical connections exposed to rain or damp conditions.

IDEAL WeatherProof Wire Connectors are designed to excel in above grade, interior/exterior connections exposed to damp/wet and corrosive environments.

In many cases, traditional twist-on wire connectors are not suitable for these applications and require additional materials like heat shrink, resin packs, and tape to ensure a safe connection.

IDEAL WeatherProof connectors eliminate the need for these additional materials and provide a safe, durable and long-lasting connection in these harsh environments in one easy step.

It all adds up to valuable savings in time, money and energy.

Features:

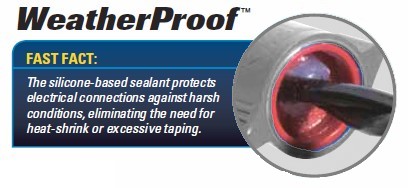

• Silicone-based sealant protects against moisture and corrosion
• UL listed to 486D for use in damp/wet locations
• Easy to apply pre-filled twist-on wire connectors
• 3 models handle wire sizes from #22 to #6 AWG copper conductors
• Swept-wing design for comfort and greater leverage
• Live-action, square-wire spring
• Hexagonal shape allows connectors to be applied with standard nutdriver
• No pre-twisting required
• Shell rated for 105° C

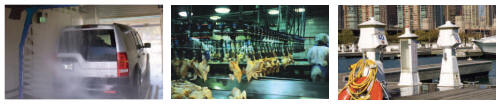

Applications:

• Exterior area and security lighting
• Outdoor power outlets
• Decorative patio & deck lighting
• Marine shore-power and dock lighting
• Traffic-signal control circuits
• Outdoor signage
• Basement, garage, and car-port circuits
• Bathroom/spa vent fans
• Automatic carwashes
• Industrial hosedown/washdown
• Note: For Use on Copper Wire Only. Do Not Use on Aluminum Wire. - One Time Use Only - Do Not Reuse Connector. - Not for Use in Continuous Submersion Applications

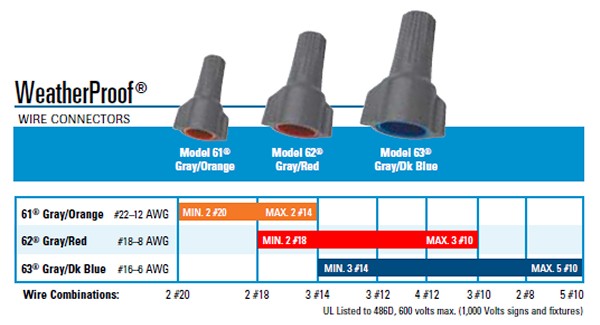

Listed Wire Combinations

California residents see Prop 65 WARNINGS

	Orders over $300 ship FREE to 48 States
Model 61 Gray/Orange
$583.73	1000 pcs Carton	WeatherProof Wire Connector, 61, Gray/Orange, 1,000/Carton ID-30-1361
Model 62 Gray/Red
$726.39	1000 pcs Carton	WeatherProof Wire Connector, 62, Gray/Red, 1,000/Carton ID-30-1362
Model 63 Gray/Dark Blue
$1083.61	1000 pcs Carton	WeatherProof Wire Connector, 63, Gray/Dk. Blue, 1,000/Ctn ID-30-1363
