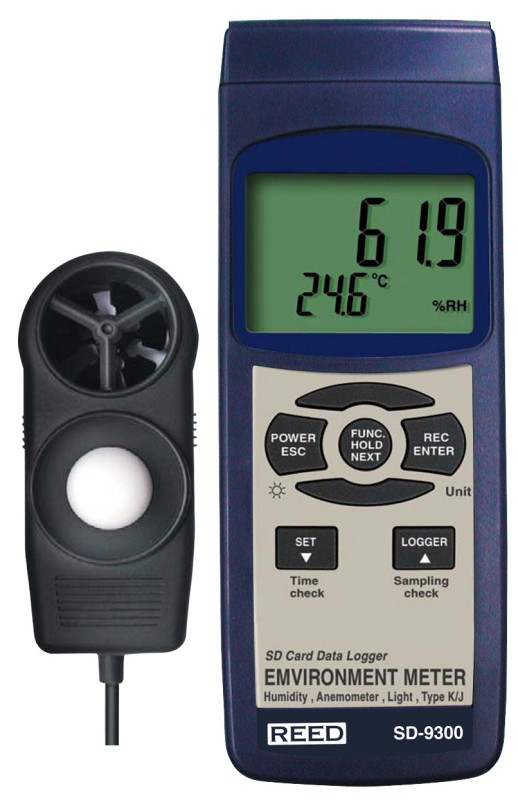

REED SD-9300
Environment Multi-Function Meter Datalogger

 Features:

  • Measures relative humidity, air velocity, light levels, and temperature with a type J/type K thermocouple thermometer
  • Also measures sound level with optional adapter
  • Air velocity is measured in m/s, ft/min, km/h, mph or knots
  • Light levels are measured in foot-candles or lux
  • Temperature is measured in C or F
  • Easy to read LCD with backlight
  • Data hold and Max/Min record
  • Real time data logger with integral SD memory card (OPTIONAL)
  • Just plug the SD card into the computer and it downloads directly to EXCEL
  • RS-232 and USB computer interface
  • Auto or manual power off
  • NIST Traceable Certification Available

Specifications:

  • Air Velocity Range: 0.4 to 30.0 m/s; 1.4 to 128.0 km/h; 0.9 to 78.3 mph; 79 to 6890 fpm; 0.8 to 68.0 knots
       Resolution: 0.1 m/s; 0.1 km/h; 0.1 mph; 1 fpm; 0.1 knot
       Accuracy: 2% + 0.2 m/s (0.8 km/h; 0.4 mph; 40 fpm; 0.4 knot)
  • Humidity Range: 0% to 95% RH
       Resolution: 0.1% RH
       Accuracy: ≥70% RH: (3% reading + 1% RH) < 70% RH: 3% RH
  • Light Range: 0 to 20,000 Lux (0 to 1,860 Ft-cd)
       Resolution: 1 Lux (0.1 Ft-cd)
       Accuracy: (5% rdg 8 dgt)
  • Type K Temp.Range: -100.0 to 1300.0C (-148.0 to 2372F)
       Resolution: 0.1C/F
       Accuracy: (0.4% +0.5C/+1F)
  • Type J Temp.Range: -100.0 to 1200.0C (-148.0 to 2192F)
       Resolution: 0.1C/F
       Accuracy: (0.4% +0.5C/+1F)
  • Includes: Multi-function probe, hard carrying case, and batteries
  • Power Supply: 6 x 1.5V UM3/AA batteries
  • Dimensions: 5.27 x 2.36 x 1.29 in.;
       Probe: 4.09 x 1.81 x 1.14 in.
  • Weight: 515g (1.13 lb)
  • Spec Sheet (PDF)

New Item!

REED SD-9300 Environment Meter Data Logger




SD-9300 Environment Meter Datalogger

RD-SD-9300
$233.10

REED SD-9300 Environment Meter Datalogger




SD-9300 Environment Meter Datalogger
w/ NIST

RD-SD-9300-NIST
$606.60

REED SD-9300 Environment Meter Datalogger w/ NIST

NIST Traceable Certification Available

NIST Traceable Certification Available - (Optional)

Note: NIST Certification may delay shipment by 1 - 3 Days

Orders over $300 ship FREE to 48 States



Optional Accessories:



Optional Sound Level Adapter

RD-SL-417
$139.00

Optional Sound Level Adapter


Optional Sound Level Adapter w/ NIST

RD-SL-417-NIST
$372.60

Optional Sound Level Adapter for SD-9300 w/ NIST


 Optional 4GB SD Memory Card
RD-SD-4GB
$28.00

Optional SD Card


Type K Thermocouple Wire Probe

RD-TP-01
$15.00

No Photo



USB Adapter Cable

RD-USB-01
$69.00

USB-01 Cable


PC Software

RD-SW-U801-WIN
$69.00

8 Channel Windows Compatible Software

Orders over $300 ship FREE to 48 States
