DeviceNet
Tutor-Level 1
a NEW Tutorial covering such topics
as:
- What is DeviceNet
KS-100
(Single Student)
$119.00 |
|
|
- Component Identification
- Physical Media
- Power Supplies
- Grounding
- Intro to DeviceNet Messaging
- Tips & Tricks
- Glossary
|
|
|
 |
The Tutorial includes a Laboratory Manual
for use by Tech Schools, Community Colleges, Company Training Departments,
Apprenticeship Programs and individuals.
It also includes a calculator for determining the voltage drop of the
network. This is critical in the design and maintenance of an
efficient DeviceNet.
|
The
results of the calculations are graphically displayed on the next screen,
emphasizing the results.
|
 |
The high
level of interactivity engages the student and brings each concept to
life.
|
 |
|
|

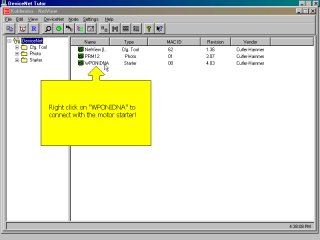

DeviceNet
Tutor-Level 1 includes a simulation of Cutler Hammer
Automation's NetView Software. The simulation covers
Explicit Messaging.
|
|
|

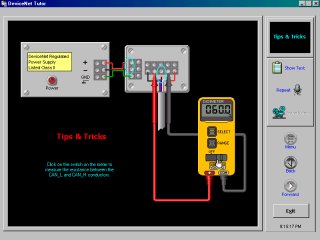

A unit
covering tips and tricks to the successful commissioning of a network is
also included. These are things we learned the
"hard-way!"
|
The tutorial also includes a final
Quiz. Once the student scores 85% or above, a certificate of
completion, with the student's name and score are
printed.
|
 |
Comments from Beta Testers:
Jeff White:
"Really liked all the interaction in this
unit. Good exercise at the end allowing them to build a
system."
"Really appreciated having the lab
manual in this format so a person could print only what they wanted.
"
"Great job!! I would definitely
recommend using this in the classroom."
Jim Bullington:
"It rates a big coooooool."
Marty McKinsey:
"I found the DeviceNet
Tutor 1 to be a very good training tool and I expect that the College will
be purchasing a few packages."
"One of the best explanations of
Power Supply and network design I have
seen."
|
