IDEAL developed
the 770 Series to provide electricians with all the features they
need for measuring in 1000A environments
and industrial settings.

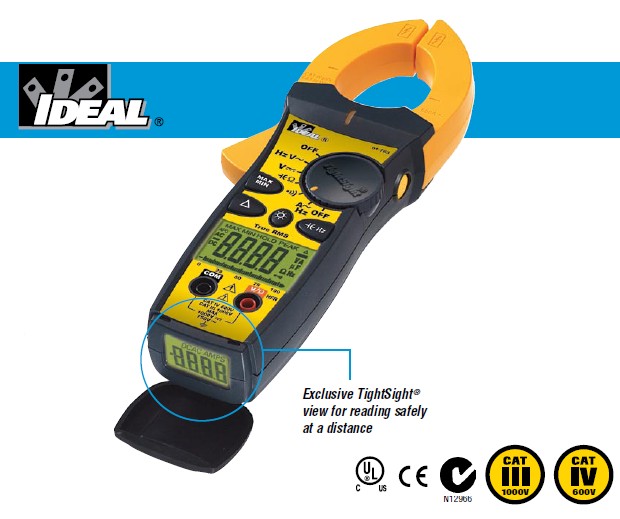

The unique backlit display in
the bottom of
the clamp is an industry first. It enables an
electrician to view measurement results
in dark, bright or tight locations without difficulty or safety
risk.
The new feature-rich IDEAL TightSight® Clamp
Meters are built to professional quality
standards to withstand tough use in commercial and industrial
settings.
The High Frequency
Rejection (HFR) feature measures accurately even in noisy
electrical environments.
For everything from load
measurement to troubleshooting industrial motors and adjustable
speed drives (ASDs), the new TightSight Clamps bring speed,
accuracy, safety and ease-of-use together
in one rugged meter line.
|
 |
Features:
-
TightSight® bottom display
-
Tapered jaws with hook tip
-
Measures AC Current
-
Measures DC Current (model
61-775
only)
-
True RMS
-
AC/DC Voltage
-
Selectable audible and visual voltage
alerts on AC/DC voltage functions
-
Frequency via clamp head or test leads
-
Resistance
-
Capacitance
-
High Frequency Rejection*
-
Peak hold
-
Max/min
-
Data hold
-
Audible continuity
-
Selectable auto power off
-
Backlit display
-
Low Battery Indicator**
-
Includes leads, alligator clips and
case
-
CAT IV – 600V rating
-
CAT III – 1000V rating
-
2-year warranty
-
>>
see spec sheet
|
Range &
Resolution |
| |
61-773 |
61-775
|
Accuracy
|
|
AC Current |
0.0-999.9A |
2%
|
|
DC Current |
–
|
0.0-999.9A |
2%
|
|
AC Voltage |
0.0-750.0V |
1%
|
|
DC Voltage |
0.0-999.9V |
1%
|
|
Resistance |
0.0-9999Ω |
1.5%
|
|
Capacitance
|
0.0-999.9μF |
5.0%
|
|
Continuity |
0.0-999.9Ω |
Audible at >30Ω |
|
Frequency |
20.0-400.0Hz |
0.5% |
|
Jaw Size |
20 (51mm) |
|
|
|
1000A AC Clamp Meter
ID-61-773
OUT OF
STOCK |
|
|
|
|
1000A
AC/DC
Clamp Meter
ID-61-775
$347.97 |
|
|
|
|
|
Orders over $300 ship
FREE
to 48 States
California residents see
Prop 65 WARNINGS |
Order online:
Add
Order offline:
