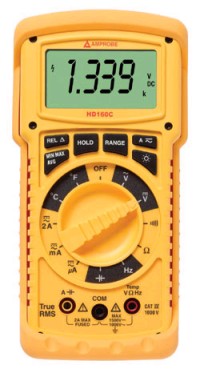

Amprobe HD160C Heavy-Duty True RMS MultiMeter
(click photo for larger Image)


Amprobe HD160C
True RMS Heavy-Duty MultiMeter
 AM-HD160C
 $228.99  $584.99
(1 Left)

Store Menus

> New Items & Specials
  > Closeouts
> Arc Flash Clothing
> Automotive
> Blue Print Reading
> Building Code / ADA
> Business/Office Related
> Calculators/Measuring
> Concrete / Masonry
> Construction Related
> Closeouts & Specials
> Cost Guides
> Electrical Related
 > 2023 NEC and Related
 > 2020 NEC and Related
 > 2017 NEC and Related
 > 2014 NEC and Related
 > 2011 NEC and Related
 > Alt Energy / Green Bldg
 > Basic Electricity
 > Electrical Calculations
 > Communications / VDV
 > DataComm Test
 > DataComm Tools
 > Electrical Exam Prep
   > JMan Prep Combos
   > Master Prep Combos
 > Electrical Estimating
 > Electrical Safety
 > Electrical Theory
 > Hazardous Locations
    & Materials (HazMat)
 > Industrial Electricity
 > Insulated Tools
 > Low Voltage
 > PPE FR Clothing
 > Residential Wiring
 > PLC / Motor Controls
 > Test Equipment
 > Electrician's Tools
 > Utility Related
> Electrical Supplies
> Electronics & Related
> Emergency / Rescue
> Exam Prep - Electrical
> Exam Prep - HVAC
> Exam Prep-Mechanical
> Fire / Firefighting
> Gifts for the Trades
> Green Bldg / LEEDS
> Hazardous Locations
   & Materials (HazMat)
> Hobby / Build-it Related
> HVAC-R / Mechanical
   > HVAC Exam Prep
   > HVAC Tools
> Inspection Related
> Insulated (1000v) Tools
> Maintenance Related
> New Items & Specials
  > Closeouts
> Plumbing / Mechanical
> PPE  >> Mens     >> Womens
> Rack-A-Tiers Store
> Safety Related
> Small Engines
> Smart Box Store
> Software
> Spanish Titles
> Test Equipment
> Tools
> Utility Related
> VDV Test   > VDV Tools
> Welding
> Work Gear



Amprobe HD160C Heavy-Duty Autoranging True RMS MultiMeter

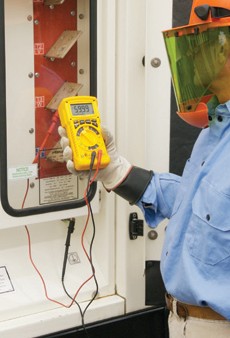

The HD160C is designed for professional use in harsh environments.The HD160C is designed for professional use in harsh environments.

The meter is unusually rugged and reliable in everyday heavy use applications. The meter is made using waterproof construction to prevent dirt, grime and moisture from entering the case and causing inaccurate readings or damaging shorts.

Built of tough, fire-retardant thermoplastic resistant to grease and chemical spills, with all sensitive components shock-mounted for a drop resistant to at least eight feet.

HD160C has an extended voltage measurement capability of 1500 V dc and 1000 V ac, unmatched by any other line of digital multimeters. The extended voltage ranges can withstand transients up to 12 kV.

  • Highest voltage capability, measuring to 1500 Vdc and 1000 Vac
  • CAT IV 1000 V rated
  • Special sealing for environment and water resistance. IP67 rated
  • Constructed with drop-resistant housing and PCB mounting
  • Measures capacitance, temperature and frequency
  • True RMS
  • Superior 10,000 count resolution with bar graph
  • Magne-Grip™ holster, frees both hands for work
  • Includes high voltage test leads with threaded alligator clips
  • Temperature measurement built-in
  • Frequency and capacitance
  • Digi-Glo™ bright backlight
  • Display 4 digit LCD, 9999 counts, with annunciators, menu features and 41 segment bargraph.
  • Relative Max/Min/Avg, Hold and Range Lock
  • Polarity Indication Automatic
  • Input overload indication OL, -OL.
  • Auto Power-Down

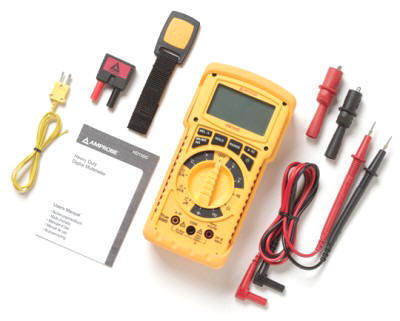

HD160C Included Accessories

Included Accessories: Heavy Duty CAT IV 1000 V Test leads with threaded alligator clips (TL1500), battery (installed), hex wrench (inside holster), Holster with Magne-Grip strap, Type K thermocouple probe (TP255), Temperature Adaptor (TA-1A) and User Manual.


Battery Life:   150 hours typical with alkaline
Size:   200 x 102 x 59 mm (7.9 in x 4.0 in x 2.3 in)
Weight:   642 g (20 oz) Including battery
Safety:   Meets EN 61010-1 CAT IV 1000 V (1500 V DC max)
Class II, EN 60529:IP67



Specifications:


DC Volts Ranges:   1000 mV, 10 V, 100 V, 1500 V
DC Volts Resolution:   0.1 mV in 1000 mV range
DC Volts Accuracy:   ±(0.1 % rdg + 5 dgt)
DC Volts Input Impedance:   10 MΩ
DC Volts CMRR:   >120 dB up to 1500 V dc
DC Volts NMRR:   >60 dB at 50 or 60 Hz
DC Volts OL Protection:   1500 V dc or 1000 V ac rms
DC Volts Transient protection:   12 kV impulse (1.2 μS/50 μS) based on EN 61010-1:2001 impulse requirement for at CAT IV 1000 V/1500V dc product. This product should not be used in installations
AC Volts True rms Ranges:   1000 mV, 10 V, 100 V, 1000 V
AC Volts True rms Resolution:   0.1 mV in 1000 mV range
AC Volts True rms Accuracy:   1000 mV (45 Hz to 400 Hz) ± (1.2 % rdg + 10 dgt)
AC Volts True rms Accuracy:   10 V, 100 V (45 Hz to 500 Hz) ± (1.2 % rdg + 10 dgt)
AC Volts True rms Accuracy:   10 V, 100 V (500 Hz to 2 kHz) ± (2.0 % rdg + 10 dgt)
AC Volts True rms Accuracy:   1000 V (45 Hz to 1 kHz) ± (2.0 % rdg + 10 dgt)
AC Volts True rms Input Impedance:   10 MΩ
AC Volts True rms Conversion type:   True rms, ac coupled 5 % to 100 % of range
AC Volts True rms Crest factor:   ≤ 3
AC Volts True rms OL Protection:   1500 V dc or 1000 V ac rms
Transient protection:   12 kV impulse (1.2 μS/50 μS) based on EN 61010-1:2001 impulse requirement for at CAT IV 1000 V product. This product should not be used in installations where transients exceed 12 kV
DC Current Ranges:   100 μA, 1000 μA, 10mA, 100mA, 400mA, 2A (Auto/Manual ranging)
DC Current Resolution:   0.01μA in 100 μA range
DC Current Accuracy:   100 μA range ± (0.5% rdg + 10 dgts)
DC Current Accuracy:   1000 μA to 400 mA ranges ± (0.5% rdg + 5 dgts)
DC Current Accuracy:   2 A range ± (1.5% rdg + 10 dgts)
DC Current Input protection:   2 A/1500 V fast blow ceramic fuse 8×65 mm on A input , FP700

* * * * * * * *

Heavy Duty Multimeter Comparison Chart

FEATURES

HD110C

HD160C
DC Voltage 200.0m, 2.000, 20.00, 200.0, 1500V

1000.0 m, 10.000, 100.00, 1500.0 V
AC Voltage 200.0m, 2.000, 20.00, 200.0, 1000V

1000.0 m, 10.000, 100.00, 1000.0 V
Current AC/DC

200.0µ, 2.000m, 20.00m, 200.0m, 2 A

100.00µ, 1000.0µ, 10.000m,
100.00m, 400.0m, 2.000A

Resistance 200.0, 2.000k, 20.00k, 200.0k, 2.000M, 20.00 MΩ

1000.0, 10.000k, 100.00k, 1000.0k, 10.000M, 40.00MΩ
Diode

Yes

N/A

Continuity

Yes

Frequency

N/A

100.00, 1000.0, 10.000k, 100.00k, 1000.0k, 10.000MHz

Capacitance

N/A

40.00µf, 400.0µf, 4.000µf,
40.00µf, 400.0µF

Temperature

N/A

-20 °C ~ 1300 °C
(-4° F ~ 2372 °F)

* * * * * * * *
