AM-520
HVAC Multimeter
AM-520
$45.92 |
|
|
|
Amprobe
AM-520 HVAC Multimeter

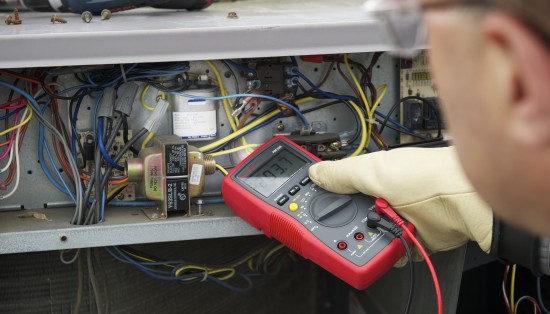

Designed for the HVAC
professional
The
AM-520 is complete with key functions such as temperature, micro
amps used for flame sensor troubleshooting and capacitance to check
motor startup capacitors.
The AM-520
measures a complete range of electrical parameters and features a built
in flashlight, a third hand probe holder and
VolTect Plus non-contact
voltage detection.
Features:
- Measurements:
Voltage up to 750VAC and 1000VDC, ac/dc Current, Resistance, Frequency,
Capacitance, Temperature.
- CAT III 600V, CAT II 1000V
- VolTect Plus Non-contact voltage
detection
- Audible continuity
- Diode test
- Data hold
- Max/min memory
- Relative zero mode
- Built-in flashlight
- Built-in test leads storage and third hand
holder
- Auto and manual ranging
- Auto power off and low battery warning
- Backlit LCD display with analog bar graph
- Velcro strap to hang a meter
- Carrying Case

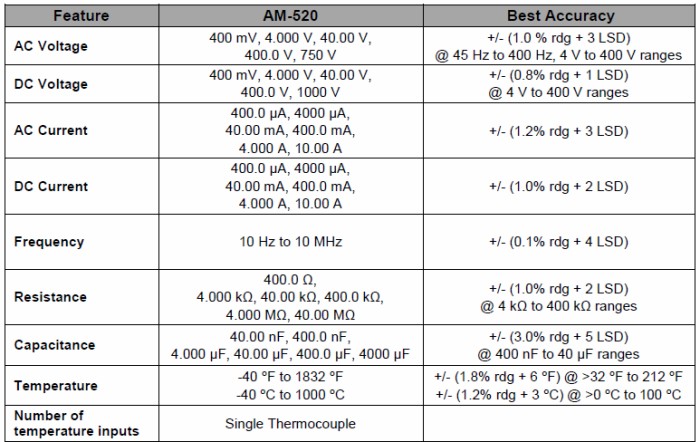

Specifications:
