MultiScanner
i700
OneStep
Electronic Stud Finder & Wall Scanner by Zircon
The
World’s First Intelligent Wall Scanner!

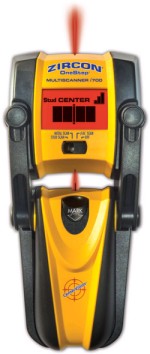

MultiScanner® i700 is the premiere
offering in Zircon's OneStep™ family of wall scanners. Designed for
carpenters, plumbers, remodelers, and do-it-yourselfers who need to
locate wood and metal studs, pipes and metal, and find and trace hot
AC wiring behind walls, floors, and ceilings.
As the world's first intelligent wall scanner,
MultiScanner® i700 makes all your projects fast, easy, and flawless.
Find studs behind
walls faster, easier, and more accurately than ever.
The new i700 doesn't look or work
anything like your old stud finder. It all starts with a floating
scanner head featuring a bright backlit LCD display.

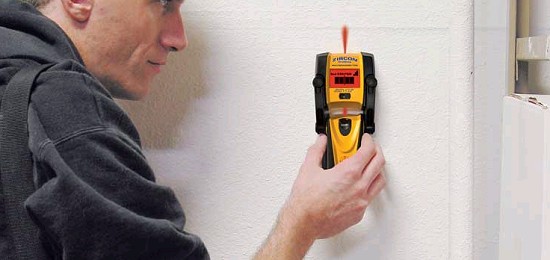

Press the i700 against the wall, and the
floating head adjusts to your hand angle to make it easy to keep
contact with the wall.
Move it sideways across the wall, and when the i700 finds
the center of a stud, it beeps and the SpotLite® shines.
i700 locates wood and metal studs, finds nonferrous metal such as
copper up to 1-1/2 inches deep, and finds ferrous metal, such as
rebar, up to 3 inches deep.
AC Wirewarning® continuously detects hot AC for safety,
and AC Trace helps map out subsurface location of hot electrical
wiring
Features:
- Zircon-exclusive CenterVision™
technology finds the
center of studs in OneStep™
- Auto Recalibration
continuously recalibrates and points in the direction of the
nearest stud
- Exclusive AC WireWarning™
continuously detects hot AC
- Integrated erasable marker for one-hand
operation
- Unique floating head for improved accuracy
- Finds both wood and metal studs
- AC scanning to trace hot wires
- Metal scanning for finding pipes, nails,
rebar, and other hidden metal
- Large easy-to-see backlit LCD screen
- Patented SpotLite® Pointing System
Applications:
- Find the center and
edges of wood or metal studs or joists to:
– Hang cabinets, pictures, mirrors, and shelves securely
– Install ceiling fans, grab bars, and chandeliers
- Find metal pipes
behind tile and in concrete
- Find conduit, rebar,
electrical boxes, exhaust vents, and ducting
- Trace hot wires
behind walls, floors, and ceilings
Specifications:
| Dimensions |
7.6 in. H x 3.6 in. W x 1.7
in. D |
| Weight |
7.4 oz (210 g) with battery |
|
Battery Type |
9-V alkaline (included) |
| Position accuracy |
Stud Scan mode:
Accuracy:
Up to 3⁄4 inch depth
Center: 1⁄8 inch typical
Edge: 3⁄16 inch typical
At 1 inch depth
Center: 1⁄4 inch typical
Center finding capability: up to 1-1⁄2 inches typical
Metal Scan mode: Typically within 1⁄2 in. |
| Depth |
Up to 1-1⁄2 in. (38 mm) in
Stud Scan mode
Up to 1-1⁄2 in. (38 mm) for copper in Metal Scan mode
Up to 3 in. (76 mm) for rebar in Metal Scan mode
NOTE: Sensing depth and edge detection can
vary due to moisture content of materials, wall texture, and
paint. |
| AC Position accuracy |
Typically 90–250 V at 50–60
Hz within 6 in. (152 mm) of a hot unshielded wire |
| AC Depth |
In typical drywall with
Romex™ wiring, wire
can be detected up to 3 in. (76 mm) deep |
| Operating temperature |
40° to 120°F (4° to 49°C) |
| Storage temperature |
-14° to 140°F (-26° to
60°C) |
| Humidity |
80% RH (noncondensing) |
| Water resistance |
Splash resistant, not
waterproof |
|
