REED SD-947
4-Channel Thermometer Data Logger

Features:

  • Measures and displays 4 separate temperatures simultaneously
  • Calculates and displays temperature differentials (T1-T2)
  • Accepts Type K, J , R, S, E, T thermocouples and Pt 100Ω RTD
  • Data hold and Max/Min record
  • Measures in C and F
  • Real time SD memory card datalogger with a built-in clock and calendar (Memory card Optional)
  • Sampling time set from 1 second to 3600 seconds
  • No extra software needed, just plug an SD card into the computer and it downloads directly to EXCEL
  • Easy to read LCD with backlight
  • Auto power off or manual power off
  • NIST Traceable Certification Available
  • USB and RS232 computer interface
  • Model SD-947DELUXE Kit, includes: SD-947 Thermocouple Thermometer, LS-109 Surface Probe, LS-103 Air/Gas Probe, LS-107 General-purpose Probe, LS-134A Needle Tip Probe all in a hard carrying case. (see Probes >> here)

Specifications:

  • RTD Temp. Range: -199.99 to 850.0C (-327.9 to 1562.0F)
  • Accuracy: (0.4% + 1C), (0.4% + 1.8F)
  • Sampling Time: 1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds
  • Memory Card: uses SD memory card, 1 GB to 16 GB
    (not included)
  • Data Output: USB/RS232 PC computer interface
  • Power Supply: UM3/AA (1.5 V) x 6 batteries
  • Dimensions: 177 x 68 x 45mm (7.0 x 2.7 x 1.9)
  • Weight: 515g/1.13lb

>> SD-947 DataSheet     >> SD-947 Manual

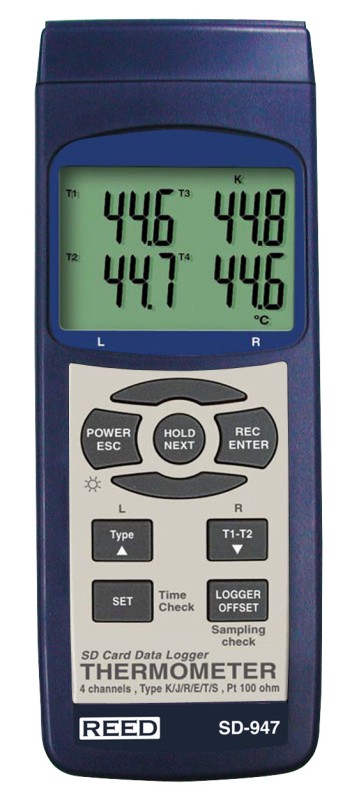

REED SD-947 4-Channel Thermocouple Thermometer Datalogger

REED SD-947DELUXE Kit

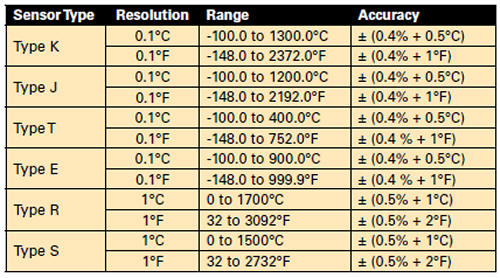

REED SD-947 4-Channel Thermometer Specifications

NIST Traceable Certification Available

NIST Traceable Certification Available - (Optional)

Note: NIST Certification may delay shipment by 1 - 3 Days

Orders over $300 ship FREE to 48 States




REED SD-947 4-Channel Thermometer

RD-SD-947
$208.05

REED SD-947 4-Channel Thermometer


REED SD-947 4-Channel Thermometer w/NIST
RD-SD-947-NIST
$364.80

REED SD-947 4-Channel Thermometer w/NIST



SD-947DELUXE
4-Channel
Thermometer Kit

RD-SD-947KIT
$438.90

SD-947DELUXE Thermometer Kit

SD-947 Thermometer Accessories:
>> See Optional Thermocouple Probes



Optional Pt-100 Temperature Probe

RD-TP-R01
$89.00

No Photo


Optional
AC Adapter (110V)

RD-AP-9VA-110V
$20.00

110V AC Adapter



USB Adapter Cable

RD-USB-01
$69.00

USB-01 Cable


 Soft Carrying Case
9" x 4" x 2"

RD-CA-05A
$16.00

CA-05A Soft Carrying Case

Orders over $300 ship FREE to 48 States

REED Thermometers - RTD, Thermocouple & Probes:
REED C-370 RTD Thermometer
REED C-370
RTD Thermometer
REED SD-947 4-Channel Thermometer
REED SD-947 4-Channel
T/C
Datalogger

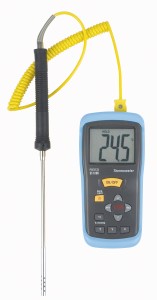

REED ST-610B Type K Thermocouple Thermometer
