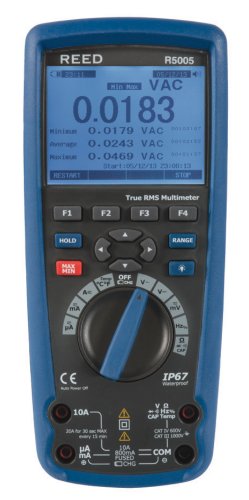

R5005 TRMS MultiMeter Data Logger

Precise True RMS multimeter with 50,000 count backlit display and digital analog bargraph.

The REED R5005 True RMS Industrial Multimeter is an full featured DMM capable of data logging and measuring multiple AC/DC signals simultaneously.

With a large LCD screen, analog bargraph and bluetooth capability the R5005 measures AC/DC voltage and current, resistance, capacitance, frequency and temperature.


Features:

  • AC and DC voltage and current, resistance, capacitance, frequency and duty cycle measurements
  • 10MHz frequency counter
  • Temperature measurement capability
  • True RMS AC voltage and current measurements
  • Min/Max/Avg and Peak hold (>1ms) functions
  • Store up to 10,000 recorded events
  • Real time clock for automatic time stamping of readings
  • Log multiple sessions or log data continuously for over 200 hours
  • 50,000-count graphical LCD with backlight displays multiple sets of measurement data simultaneously
  • Bluetooth interface
  • IP67 rated waterproof
  • NIST Traceable Certification Available

Specifications:

  • AC/DC Voltage Range: 50, 500mV, 5, 50, 500, 1000V
    Resolution: 0.001, 0.01mV, 0.0001, 0.001, 0.01, 0.1V
    Accuracy: AC: (0.3% rdg. + 25 dgt.) (50/60Hz);      DC: (0.025% rdg. + 5 dgt.)
  • AC/DC Current Range: 500, 5000A, 50, 500mA, 10A
    Resolution: 0.01, 0.1A, 0.001, 0.01mA, 0.001A
    Accuracy: AC: (0.6% rdg. + 25 dgt.) (50/60Hz);
    DC: (0.15% rdg. + 20 dgt.)
  • Resistance Range: 50, 500Ω, 5, 50, 500kΩ, 5, 50MΩ
    Resolution: 0.001, 0.01Ω, 0.0001, 0.001, 0.01kΩ, 0.01, 0.001MΩ
    Accuracy: (0.05% rdg. + 10 dgt.)
  • Capacitance Range: 5, 50, 500nF, 5, 50, 500F, 10mF
    Resolution: 0.001, 0.01, 0.1nF, 0.001, 0.01, 0.1F, 0.01mF
    Accuracy: (2% rdg. + 40 dgt.)
  • Frequency Range: 50, 500Hz, 5, 50, 500kHz, 5, 10MHz
    Resolution: 0.001, 0.01Hz, 0.0001, 0.001, 0.01kHz, 0.0001, 0.001MHz
    Accuracy: (0.01% rdg. + 10 dgt.)
  • Temperature Range: -50 to 1000C (-58 to 1832F)
    Resolution: 0.1C (0.1F)
    Accuracy: (1.0% rdg. + 2.5C (4.5F)

REED R5005 TRMS MultiMeter w/Temp

>> R5005 DataSheet

>> R5005 Manual



REED R5005
TRMS MultiMeter

RD-R5005
$314.10

REED R5005 True RMS (TRMS) MultiMeter

*  *  *  *  *  *  *



R5005 TRMS
MultiMeter
w/ NIST

RD-R5005-NIST
$422.10

REED R5005 True RMS (TRMS) MultiMeter w/ NIST

NIST Traceable Certification Available

NIST Traceable Certification Available - (Optional)

Note: NIST Certification may delay shipment by 1 - 3 Days

Orders over $300 ship FREE to 48 States

*  *  *  *  *  *  *
