Reed Instruments - Test and Measurement Equipment

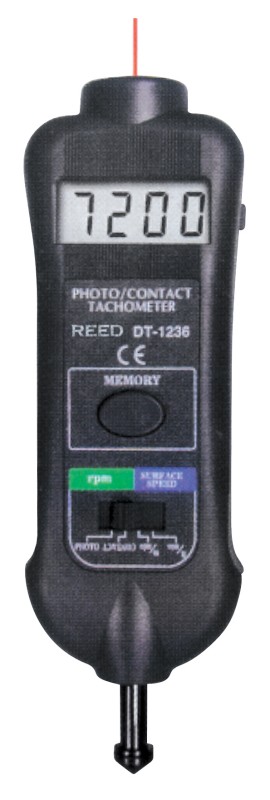

REED R7150 Professional Combination Contact / Laser Photo Tachometer

Quick responding and accurate dual function tachometer with the ability to measure non-contact RPM with built-in laser and contact measurements in ft/min (m/min).

The R7150 tachometer features both the ability to measure RPM (revolutions per minute) in rotational equipment and surface speed m/min (meters per minute) / ft/min (feet per minute) with included contact adapters.

The built-in laser for non-contact measurement provides accurate measurements up to 6.5 ft (2000 mm) away from target.


 Features:          (Formerly Model DT-1236L)

  • Dual function unit with both contact and non-contact capabilities
  • Provides fast and accurate RPM measurements of rotating objects and surface speed measurements MPM (meter per min) and FPM (feet per min)
  • Laser provides improved accuracy at a greater distance
  • Internal memory recalls min/max and last value
    LCD Display reverses depending on measurement mode
  • Includes: 3 contact adapters (2 cones, 1 funnel), surface speed wheel, reflective tape, batteries and hard carrying case
  • NIST Traceable Certification Available

Specifications:

  • Range/Resolution:
    Photo: 10 to 99,999 rpm/0.1 rpm ≤ 999.9 rpm,
    1 rpm > 1000 rpm;
    Contact: 0.5 to 19,999 rpm/0.1 rpm ≤ 999.9 rpm,
    1 rpm > 1000 rpm;
    Surface Speed: 0.05 to 1,999.9 mpm
    (0.2 to 6560 fpm)/0.01mpm ≤ 99.99 mpm,
    0.1 mpm > 100 mpm (0.1 fpm ≤ 999.9 fpm,
    1 fpm >1000 fpm)
  • Accuracy: ±(0.05% + 1 digit)
  • Sampling Rate: Photo: 1 sec. over 60 rpm;
    Contact: 1 sec. over 6 rpm
  • Detection Distance: 1.96 in. to 6.5 ft.
  • Laser: Class 2 red laser diode, 645nm wavelength
  • Power Supply: 4 x 1.5V "AA" batteries
  • Dimensions: 8.5 x 2.6 x 1.5"
  • Weight: 10.6oz
  • Spec Sheet (PDF)

REED R7150 Professional Combination Contact / Laser Photo Tachometer

NIST Traceable Certification Available

NIST Traceable Certification Available - (Optional)

Note: NIST Certification may delay shipment by 1 - 3 Days

Orders over $300 ship FREE to 48 States


REED R7150
Combination Tachometer

RD-R7150
$287.10

REED R7150 Combination Tachometer


REED R7150 Combination Tachometer w/ NIST

RD-R7150-NIST
$426.00

REED R7150 Combination Tachometer w/ NIST
