(click photo for larger Image)

(Ships FREE to 48 States)

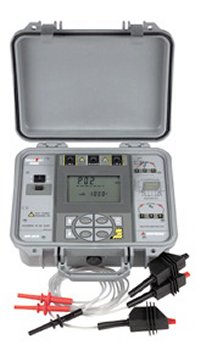

AMB-5KVD MegaTest Digital Megohmmeter AM-AMB-5KVD $2249.95 $1979.95

(click photo for larger Image)

(Ships FREE to 48 States)


AMB-5KV 5000v Digital Megohmmeter AM-AMB-5KV $2095.00 $1849.95

 >> Category: Megohmmeters & Ground Resistance Testers


Shop > Blue Print Reading > Building Code / ADA > Business/Office Related > Calculators/Measuring > Construction Related > Cost Guides > Electrical Related  > 2008 NEC  > 2005 NEC  > Alt Energy / Green Bldg  > Basic Electricity  > Electrical Calculations  > Communications / VDV  > Electrical Exam Prep  > Electrical Estimating  > Electrical Theory  > Hazardous Locations     & Materials (HazMat)  > Industrial Electricity  > Low Voltage  > Residential Wiring  > PLC / Motor Controls  > Electrician's Tools > Electrical Supplies > Exam Prep - Electrical   > Exam Prep - HVAC   > Exam Prep-Mechanical > Gifts for the Trades > Green Bldg / LEEDS > Hazardous Locations    & Materials (HazMat) > HVAC-R / Mechanical    > HVAC Exam Prep    > HVAC Tools > Inspection Related > New Items & Specials > Plumbing / Mechanical > Rack-A-Tiers Store > Safety Related > Smart Box Store > Software > Spanish Titles > Tools > Welding

Amprobe AMB-5KV / AMB-5KVD 5000v Digital Megohmmeter Insulation Resistance Testers



• Tests insulation of wires, cables, transformers, motors and generators

• Comes as a complete kit including test leads and PC software

• Built in automatic voltmeter up to 5000V warns against hazardous energized systems

• Programmable setups of test voltages and timers

• Performs the dielectric absorption ratio test

• One testing instrument for low and high voltage systems

• Internal memory, measurements can be stored for future reference

• Data download to PC

• Rugged, durable case

  Manual (PDF)

• Tests insulation of wires, cables, transformers, motors and generators

• Test voltages 500, 1000, 2500, 5000 VDC

• Measuring range 500K thru 500G ohms

• Built-in voltmeter 0 – 600Volts AC/DC (Accuracy: ± 2% of full scale)

• Lock feature applies testing voltage continuously for Dielectric Absorption Ratio Test

• Automatic discharge of equipment capacitance for operator safety

5kV Megohmmeter Comparison Chart:

1,000v Megohmmeter Comparison Chart:

FEATURES	AMB-45	AMB-25		AMB-6D
Insulation resistance (50 VDC)	N/A			20.00, 50.0, 100.0MΩ
Insulation resistance (100 VDC)	N/A			20.00, 100.0, 200.0MΩ
Insulation resistance (250 VDC)	4.000, 40.00, 400.0, 4000MΩ		40.00, 400.0MΩ	20.00, 200.0, 500.0MΩ
Insulation resistance (500 VDC)	4.000, 40.00, 400.0, 4000MΩ		400.0, 1000.0MΩ	20.00, 200.0, 500.0, 1000MΩ
Insulation resistance (1000 VDC)	4.000, 40.00, 400.0, 4000MΩ		400.0, 2000.0MΩ	20.00, 200.0, 1000.0, 2000MΩ
Resistance (9V)	N/A		999.9Ω	20.00, 100.0Ω
Low Resistance	400.0, 4000Ω		N/A	10.00Ω
Voltage AC/DC	600.0V		N/A	600.0V
Order Now	AM-AMB-45 $389.95		AM-AMB-25 $259.95	AM-AMB-6D $699.95
